W02G

The W02G is Single Phase 1.5 AMPS. Glass Passivated Bridge Rectifiers designed by Taiwan Semiconductor.

Product Overview

Taiwan Semiconductor

Part number	W02G
Manufacturer	Taiwan Semiconductor
File Size	56.58 KB
Description	Single Phase 1.5 AMPS. Glass Passivated Bridge Rectifiers
Datasheet	W02G-TaiwanSemiconductor.pdf

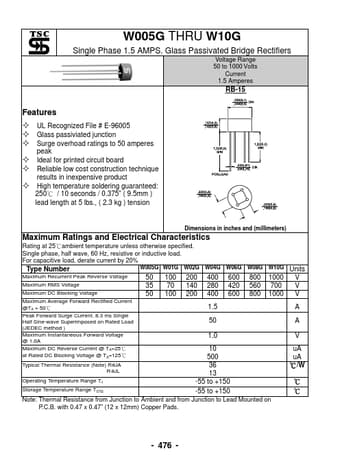

Additional preview pages of the W02G datasheet.

a UL Recognized File # E-96005 a Glass passiviated junction a Surge overhoad ratings to 50 amperes peak a Ideal for printed circuit board a Reliable low cost construction technique results in inexpensive product a High temperature soldering guaranteed: 250+ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25+ambient temperature unless otherwise specified. Single phase, hal.
