SC1102A - Synchronous Voltage Mode Controller

Product Overview

Semtech Corporation

Datasheet Details

Part number	SC1102A
Manufacturer	Semtech Corporation
File Size	255.69 KB
Description	Synchronous Voltage Mode Controller
Datasheet	SC1102A Datasheet

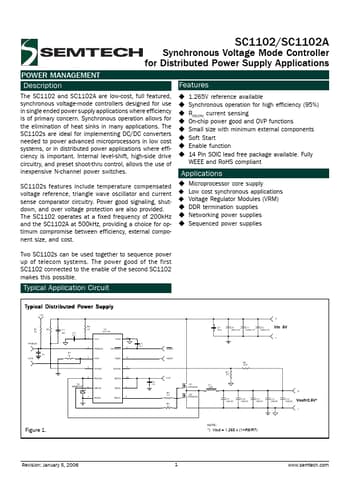

Additional preview pages of the SC1102A datasheet.

Product details

Description

The SC1102 and SC1102A are low-cost, full featured, synchronous voltage-mode controllers designed for use in single ended power supply applications where efficiency is of primary concern.

Features

include temperature compensated voltage reference, triangle wave oscillator and current sense comparator circuitry. Power good signaling, shutdown, and over voltage protection are also provided. The SC1102 operates at a fixed frequency of 200kHz and the SC1102A at 500kHz, providing a choice for optimum compromise between efficiency, external component size, and cost. Two SC1102s can be used together to sequence power up of telecom systems. The power good of the first SC1102 connected to the enab.
