SC4809A Datasheet, Controller, Semtech Corporation

SC4809A Features

• Controller a high frequency of operation, accurately programmable maximum duty cycle, current mode control, line voltage monitoring, supply UVLO, low start-up current, and programmable soft start

PDF File Details

Part number:

SC4809A

Manufacturer:

Semtech Corporation

File Size:

359.78kb

Download:

📄 Datasheet

Description:

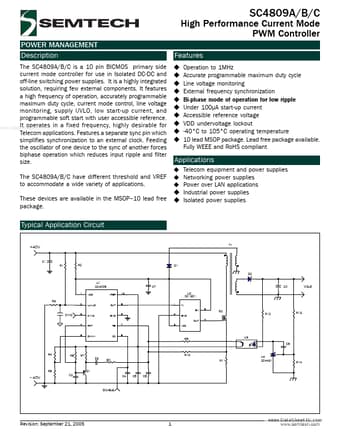

High performance current mode pwm controller. The SC4809A/B/C is a 10 pin BICMOS primary side current mode controller for use in Isolated DC-DC and off-line switching power suppli

SC4809A Application

• Applications Features a separate sync pin which simplifies synchronization to an external clock. Feeding the oscillator of one device to the sync o
