SMF12 - TVS Diode Array For ESD and Latch-Up Protection

Product Overview

Semtech Corporation

Datasheet Details

Part number	SMF12
Manufacturer	Semtech Corporation
File Size	160.23 KB
Description	TVS Diode Array For ESD and Latch-Up Protection
Datasheet	SMF12 Datasheet

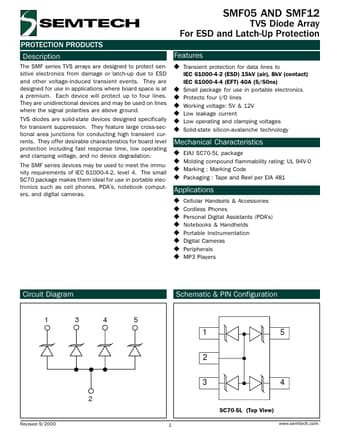

Additional preview pages of the SMF12 datasheet.

Product details

Description

The SMF series TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events.

Features

u Transient protection for data lines to u u u u u u u u u u u u u u u u u u IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Small package for use in portable electronics Protects four I/O lines Working voltage: 5V & 12V Low leakage current Low operating and clamping voltages Solid-state silicon-avalanche technology Mechanical Characteristics EIAJ SC70-5L package Molding compound flammability rating: UL 94V-0 Marking : Marking Code Packaging : Tape and Reel per EI.
