SMF05 - TVS Diode Array

Product Overview

Semtech Corporation

Datasheet Details

Part number	SMF05
Manufacturer	Semtech Corporation
File Size	160.23 KB
Description	TVS Diode Array
Datasheet	SMF05 Datasheet

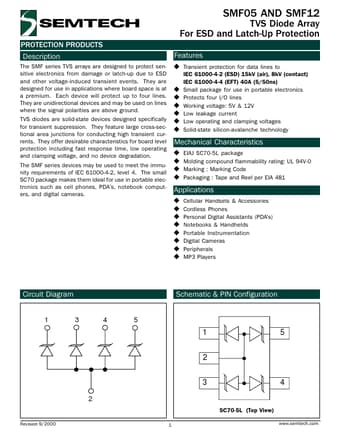

Additional preview pages of the SMF05 datasheet.

Product details

Description

The SMF series TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events.

Features

u Transient protection for data lines to u u u u u u u u u u u u u u u u u u IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Small package for use in portable electronics Protects four I/O lines Working voltage: 5V & 12V Low leakage current Low operating and clamping voltages Solid-state silicon-avalanche technology Mechanical Characteristics EIAJ SC70-5L package Molding compound flammability rating: UL 94V-0 Marking : Marking Code Packaging : Tape and Reel per EI.
