SMF05CT1G - Low Capacitance Quad Array

Product Overview

Datasheet Details

Part number	SMF05CT1G
Manufacturer	msksemi
File Size	1.46 MB
Description	Low Capacitance Quad Array
Datasheet	SMF05CT1G Datasheet

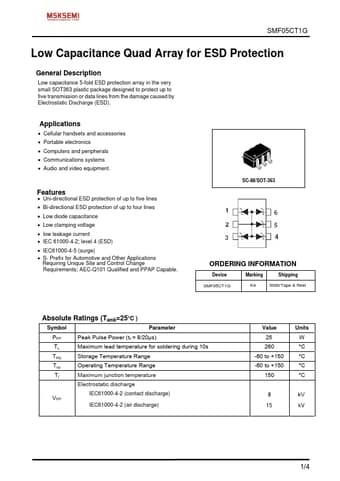

Additional preview pages of the SMF05CT1G datasheet.

Product details

Description

Low capacitance 5-fold ESD protection array in the very small SOT363 plastic package designed to protect up to five transmission or data lines from the damage caused by Electrostatic Discharge (ESD). Cellular handsets and accessories Portable electronics Computers and peripherals Communications systems Audio and video equipment.

Features

Uni-directional ESD protection of up to five lines.
Bi-directional ESD protection of up to four lines.
Low diode capacitance.
Low clamping voltage.
low leakage current.
IEC 61000-4-2; level 4 (ESD).
IEC61000-4-5 (surge).
S- Prefix for Automotive and Other.
