UCLAMP2501T Datasheet, Diode, Semtech Corporation

UCLAMP2501T Features

  • Diode ‹ Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) Cable Discharge Event (CDE) Ultra-small package (1.0 x 0.6

PDF File Details

Part number:

UCLAMP2501T

Manufacturer:

Semtech Corporation

File Size:

186.27kb

Download:

📄 Datasheet

Description:

Low voltage clamp 2.5v tvs diode. The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications

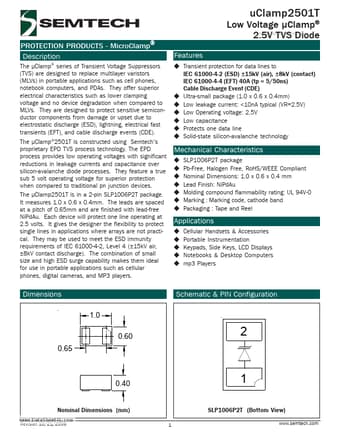

Datasheet Preview: UCLAMP2501T 📥 Download PDF (186.27kb)
Page 2 of UCLAMP2501T Page 3 of UCLAMP2501T

UCLAMP2501T Application

  • Applications such as cell phones, notebook computers, and PDAs. They offer superior electrical characteristics such as lower clamping voltage and no
