SC4210A - 8-Pin N-FET Linear Regulator Controller

SC4210A Description

8-Pin N-FET Linear Regulator Controller POWER MANAGEMENT .
The SC4210A linear regulator controller includes all the features required for an extremely low dropout linear regulator that uses an external N-chann.

SC4210A Features

* required for an extremely low dropout linear regulator that uses an external N-channel MOSFET as the pass transistor. The device can operate from input voltages as low as 1.75V and can provide high current levels, thus providing an efficient linear solution for custom processor voltages, bus termina

📥 Download Datasheet

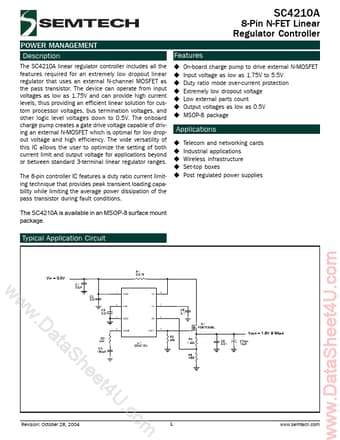

Preview of SC4210A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC4210A
Manufacturer
Semtech
File Size
313.51 KB
Datasheet
SC4210A_Semtech.pdf
Description
8-Pin N-FET Linear Regulator Controller
