SC4212B Datasheet, Regulator, Semtech

SC4212B Features

  • Regulator
  • Input Voltage Range from 1.6V to 6.0V
  • 150mV Maximum Dropout @ 1A
  • Adjustable Output from 0.5V with ± 1% Accuracy
  • 12µA Quiescent Current in Shutdow

PDF File Details

Part number:

SC4212B

Manufacturer:

Semtech

File Size:

777.40kb

Download:

📄 Datasheet

Description:

Very low input /very low dropout 1 amp regulator. The SC4212B is a high performance linear voltage regulator designed for applications requiring very low dropout voltage at load curre

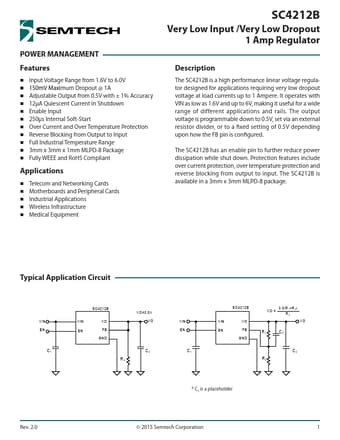

Datasheet Preview: SC4212B 📥 Download PDF (777.40kb)
Page 2 of SC4212B Page 3 of SC4212B

SC4212B Application

  • Applications
  • Telecom and Networking Cards
  • Motherboards and Peripheral Cards
  • Industrial Applications
  • Wireless
