SD05C Single Line TVS Diode

SD05C Description

Single Line TVS Diode for ESD Protection in Portable Electronics PROTECTION PRODUCTS .
The SDxxC TVS diodes are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDA’s.

SD05C Features

* ‹ 350 Watts peak pulse power (tp = 8/20µs) ‹ Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20µs) Small package for use in portable electronics Suitable replacement for MLV’s in ESD protection a

SD05C Applications

* such as cell phones, notebook computers, and PDA’s. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. The SDxxC series TVS diodes are designed to protect sensitive semiconductor components from damage or upset due to electr

📥 Download Datasheet

Preview of SD05C PDF

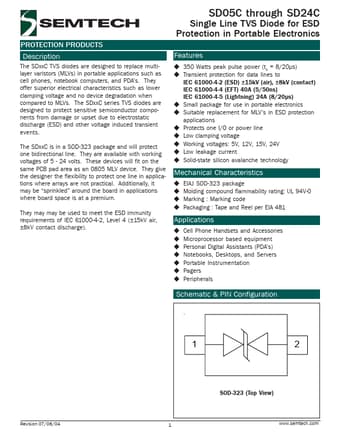

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD05C
Manufacturer
Semtech
File Size
208.22 KB
Datasheet
SD05C_Semtech.pdf
Description
Single Line TVS Diode
