SD24C Datasheet, diode equivalent, Semtech

PDF File Details

Part number: SD24C

Manufacturer: Semtech

File Size: 208.22KB

Download: 📄 Datasheet

Description: Single Line TVS Diode

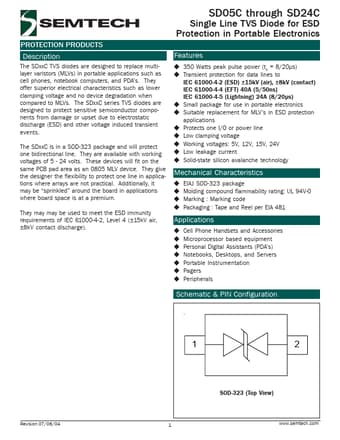

Datasheet Preview: SD24C 📥 Download PDF (208.22KB)

SD24C Features and benefits

‹ 350 Watts peak pulse power (tp = 8/20µs) ‹ Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 6.

SD24C Application

such as cell phones, notebook computers, and PDA’s. They offer superior electrical characteristics such as lower clampin.

SD24C Description

The SDxxC TVS diodes are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDA’s. They offer superior electrical characteristics such as lower clamping voltage and no device degradat.

Image gallery

Page 2 of SD24C Page 3 of SD24C
