SD24C Key Features
- 15kV, Contact
- 8kV ƽ 61000-4-4 (EFT): 40A
- 5/50ns ƽ 61000-4-5 (Surge): 12A, 8/20μs
- Level 1(Line-Ground) & Level 2(Line-Line)
- Part: SD24C
- Manufacturer: Kexin Semiconductor (official site)
- Size: 146.16 KB
Other SD24C Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
| Windforce Windforce |
SD24C | Low capacitance bidirectional TVS Diodes |
| GRANDE GRANDE |
SD24C | 15~24Volts ESD Protection |
Leiditech |
SD24C | BIDIRECTIONAL TVS DIODE |
SEMTECH |
SD24C | Single Line TVS Diode |
Diodes Incorporated |
SD24C | 350W BIDIRECTIONAL TVS DIODE |
SD24C Description

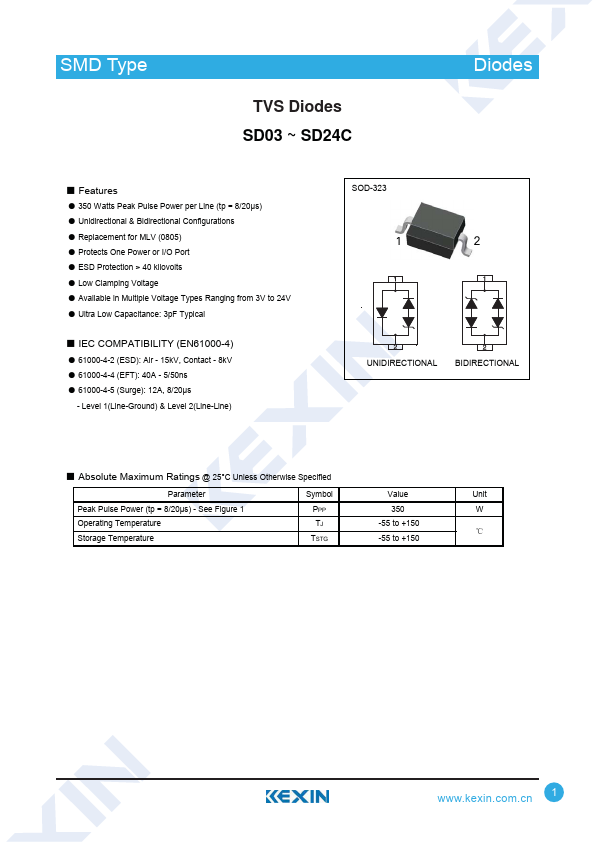

SMD Type TVS Diodes SD03 ~ SD24C T Diodes.
