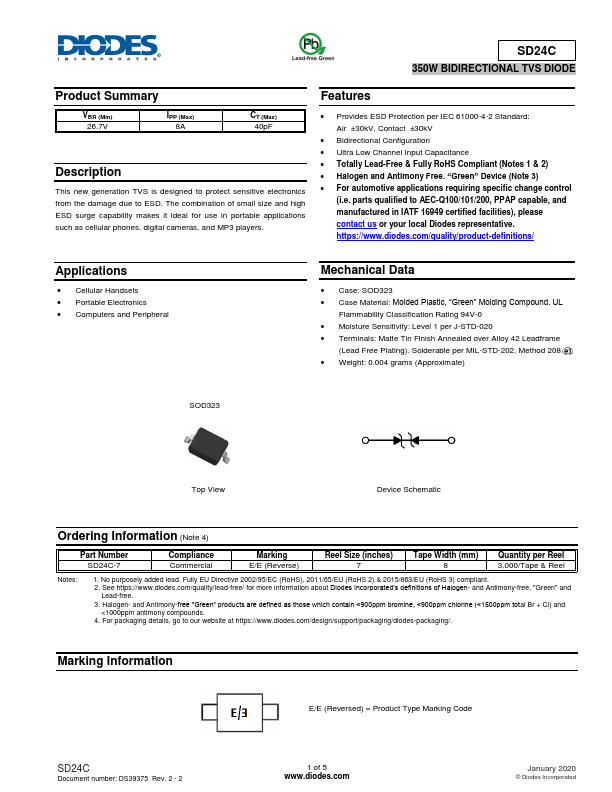

Diodes Incorporated SD24C
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.| Part No. | SD24C |
|---|---|
| Datasheet | SD24C Download |
| Manufacturer |  Diodes Incorporated |
| Description | 350W BIDIRECTIONAL TVS DIODE |
| Buy | Stock & Price |
DESCRIPTION
FEATURES
● Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV● Bidirectional Configuration
● Ultra Low Channel Input Capacitance
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.
APPLICATIONS
● Cellular Handsets● Portable Electronics
● Computers and Peripheral
MECHANICAL DATA
● Case: SOD323● Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
● Weight: 0.004 grams (Approximate) SOD323 Top View Device Schematic Ordering Information (Note 4) Part Number SD24C-7 Compliance Commercial Marking E/E (Reverse) Reel Size (inches) 7 Tape Width (mm) 8 Quantity per Reel 3,000/Tape & Reel Notes: 1.
