SMC2302S - Single N-Channel MOSFET

SMC2302S Description

SMC2302S Single N-Channel MOSFET *.
SMC2302S used trench technology are well suited for high efficiency fast switching applications, this MOSFET has been designed to minimize the on-stat.

SMC2302S Features

* VDS=20V, ID=5A RDS(ON)=30mΩ(Typ. )@VGS=4.5V RDS(ON)=38mΩ(Typ. )@VGS=2.5V RDS(ON)=50mΩ(Typ. )@VGS=1.8V
* Fast switch

SMC2302S Applications

* this MOSFET has been designed to minimize the on-state resistance and yet maintain superior switching performance, this devices are well suited for applications in the small surface mount package.
* PART NUMBER INFORMATION SMC 2302 S - TR G a b c de a : Company name. b : Product Serial number.

📥 Download Datasheet

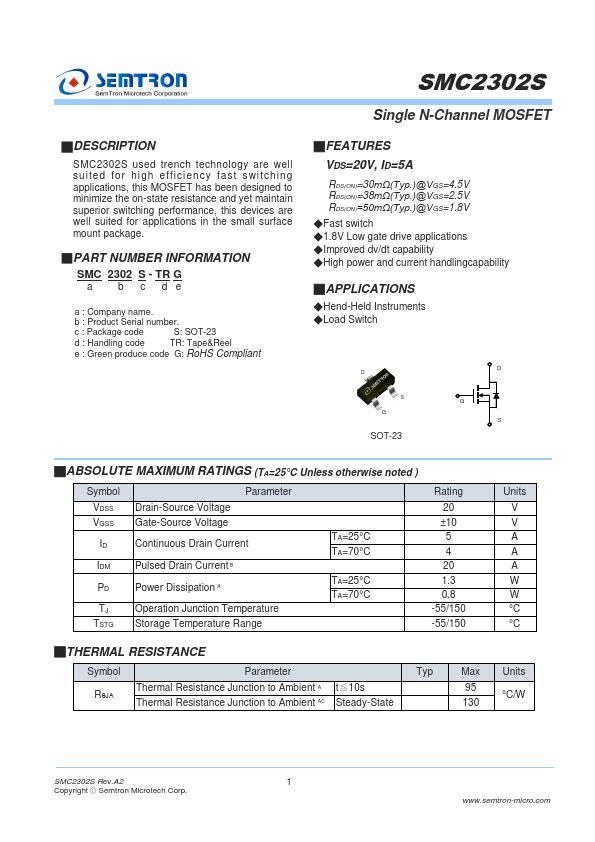

Preview of SMC2302S PDF

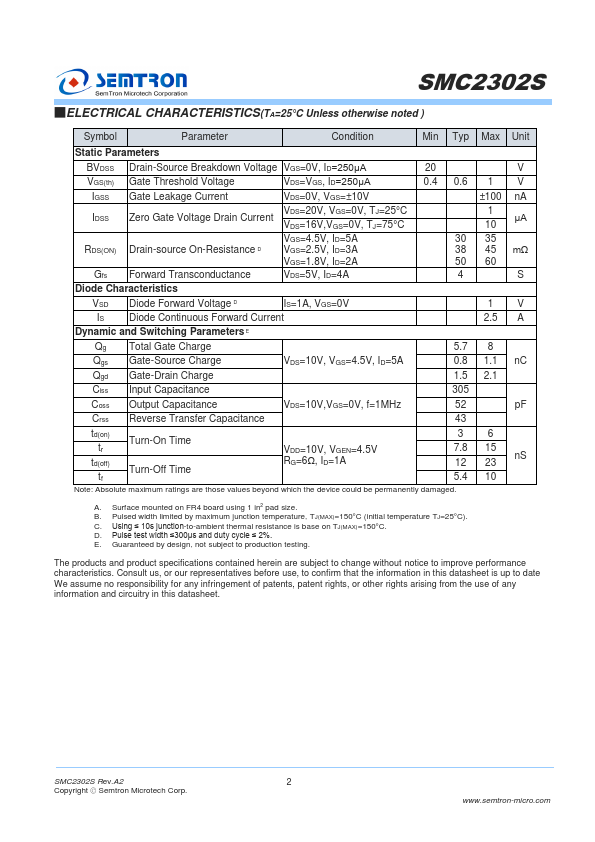

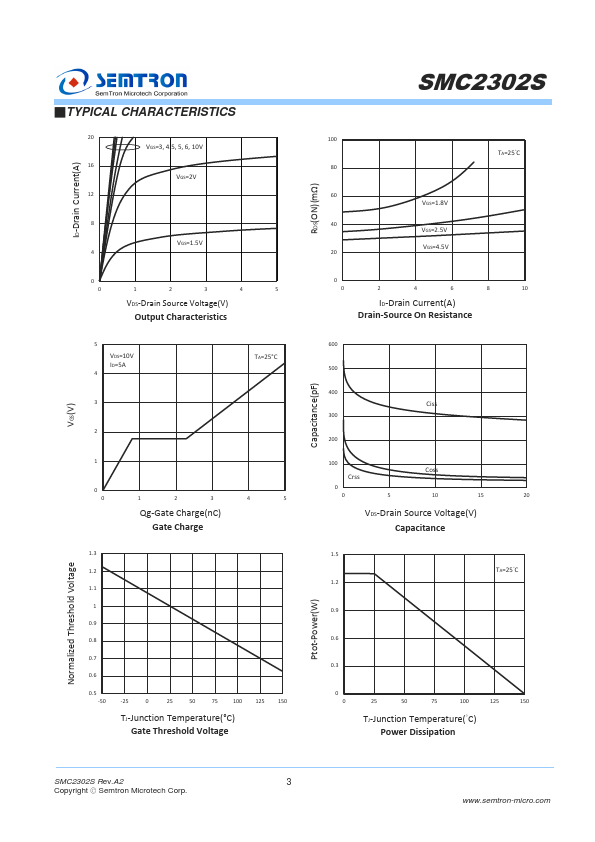

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMC2302S
Manufacturer
Semtron
File Size
305.80 KB
Datasheet
SMC2302S-Semtron.pdf
Description
Single N-Channel MOSFET
