SMC2333S - Single P-Channel MOSFET

Semtron

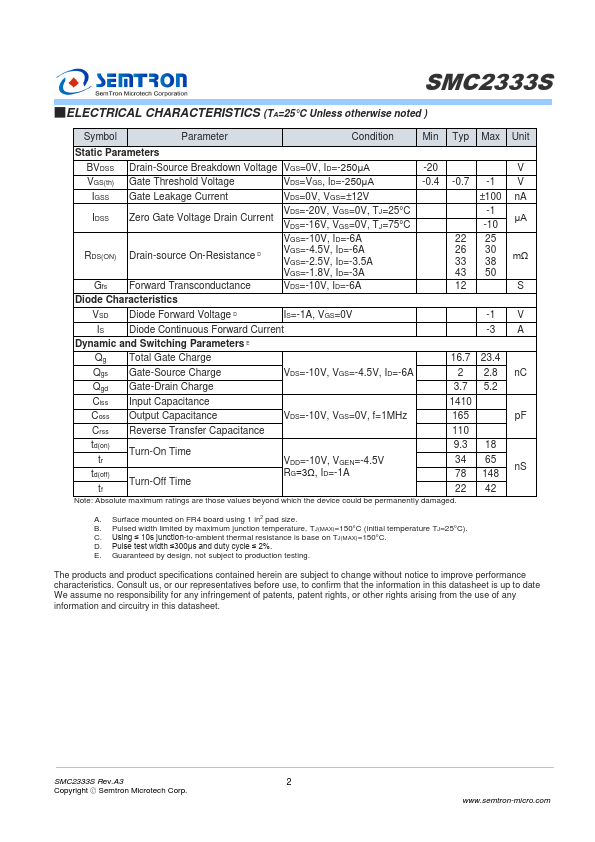

SMC2333S Datasheet Preview — Preview of SMC2333S PDF

Datasheet Details

Part number	SMC2333S
Manufacturer	Semtron
File Size	310.04 KB
Description	Single P-Channel MOSFET
Datasheet	SMC2333S-Semtron.pdf

SMC2333S Product details

Description

SMC2333 is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. PART NUMBER INFORMATION SMC 2333 S - TR G a b c de a : Company name.b : Product Serial number.c : Package code S: SOT-23L d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant FE

Features

VDS = -20V, ID=-6A RDS(ON)=22mΩ(Typ. )@VGS=-10V RDS(ON)=26mΩ(Typ. )@VGS=-4.5V RDS(ON)=33mΩ(Typ. )@VGS=-2.5V RDS(ON)=43mΩ(Typ. )@VGS=-1.8V.
1.8V Low gate drive.
