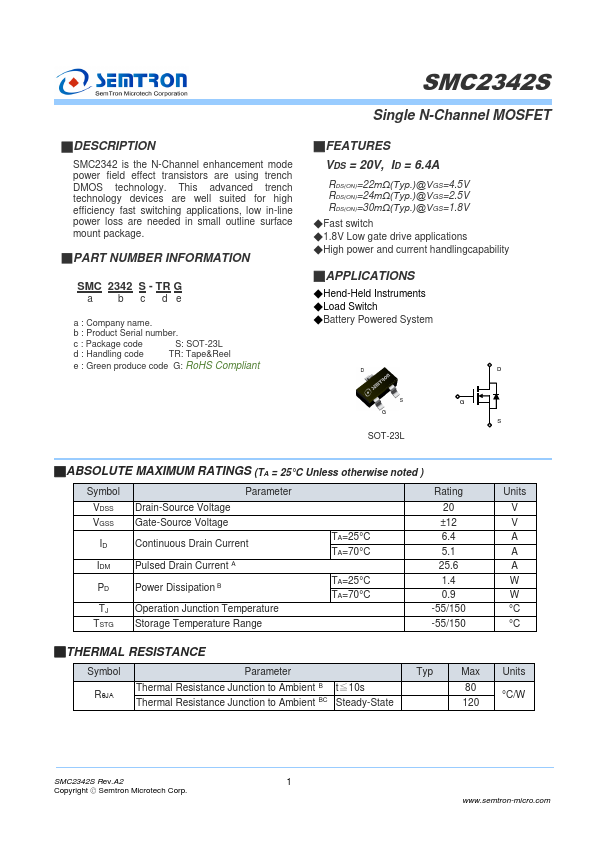

SMC2342S

Single N-Channel MOSFET

Semtron

SMC2342S Features

* VDS = 20V, ID = 6.4A RDS(ON)=22mΩ(Typ.)@VGS=4.5V RDS(ON)=24mΩ(Typ.)@VGS=2.5V RDS(ON)=30mΩ(Typ.)@VGS=1.8V

* Fast switch

* 1.8V Low gate drive applications

* High power and current handlingcapability

* APPLICATIONS

* Hend-Held Instruments

* Load Switch

* Battery Powered System D

SMC2342S General Description

SMC2342 is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss are needed in small outline surface mount package.
*PART NUMB.

SMC2342S Datasheet (334.65 KB)

SMC2342S Datasheet Preview — Preview of SMC2342S PDF

Datasheet Details

Part number:

SMC2342S

Manufacturer:

Semtron

File Size:

334.65 KB

Description:

Single n-channel mosfet.
