SMC3322S Datasheet - Semtron

Single N-Channel MOSFET

SMC3322S Features

* VDS = 30V, ID = 6.2A RDS(ON) =20mΩ(Typ.)@VGS = 10V RDS(ON) =23mΩ(Typ.)@VGS = 4.5V RDS(ON) =27mΩ(Typ.)@VGS = 2.5V

* Fast switch

* Low gate drive applications

* High power and current handlingcapability

* APPLICATIONS

* Hend-Held Instruments

* Load Switch

* PWM Applications D D S

SMC3322S General Description

SMC3322 is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss are needed in small outline surface mount package. *PART NUMB.

SMC3322S Datasheet (357.85 KB)

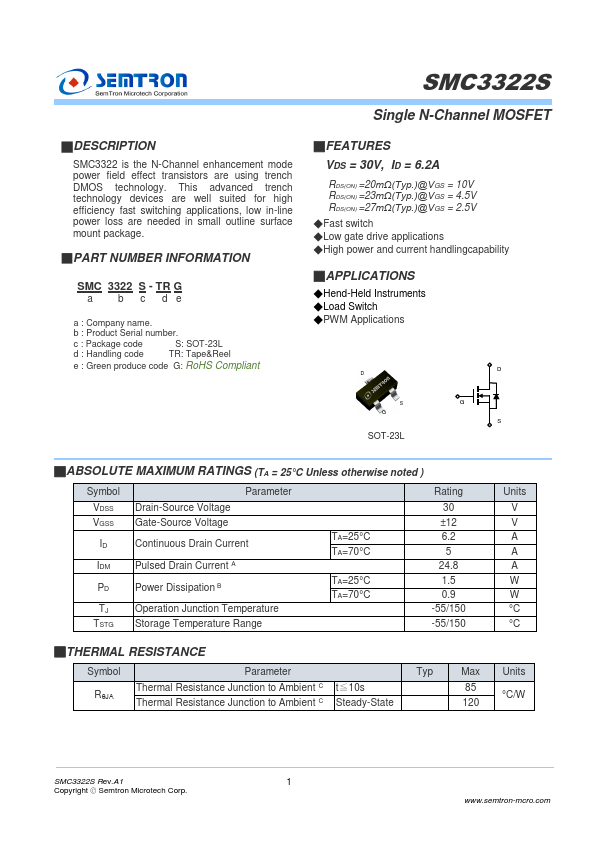

Preview of SMC3322S PDF

Datasheet Details

Part number:

SMC3322S

Manufacturer:

Semtron

File Size:

357.85 KB

Description:

Single n-channel mosfet.

📁 Related Datasheet

SMC3322SN Single N-Channel MOSFET (Semtron)

SMC3320W Common-Drain Dual N-Channel MOSFET (Semtron)

SMC3323SN Single P-Channel MOSFET (Semtron)

SMC3327SN Single P-Channel MOSFET (Semtron)

SMC33 BIDIRECTIONAL TVS DIODE ARRAY (Leiditech)

SMC33 SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)

SMC33 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (MIC)

SMC3347S Single P-Channel MOSFET (Semtron)

SMC3347SN Single P-Channel MOSFET (Semtron)

SMC33A SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (Lite-On)

TAGS

SMC3322S Single N-Channel MOSFET Semtron

Image Gallery

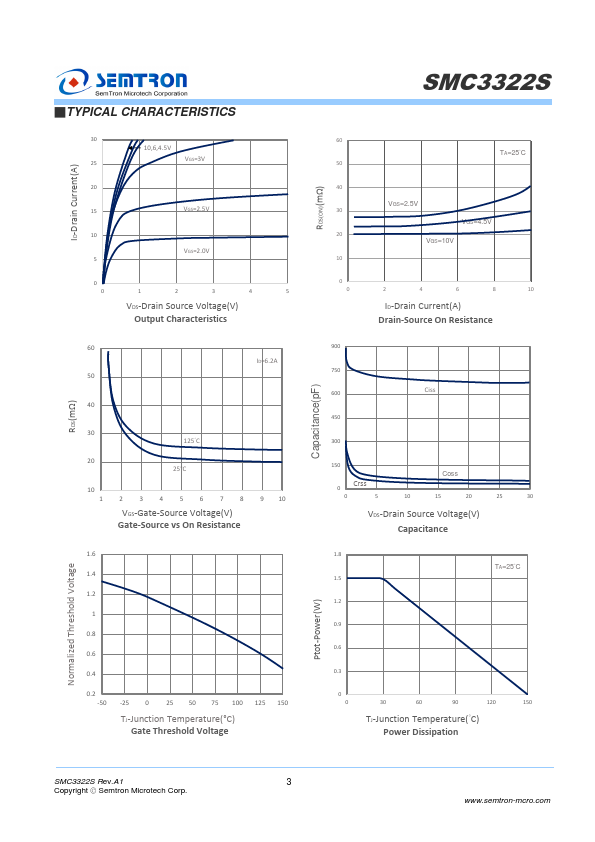

SMC3322S Datasheet Preview Page 2 SMC3322S Datasheet Preview Page 3
