SMC3327SN - Single P-Channel MOSFET

Semtron

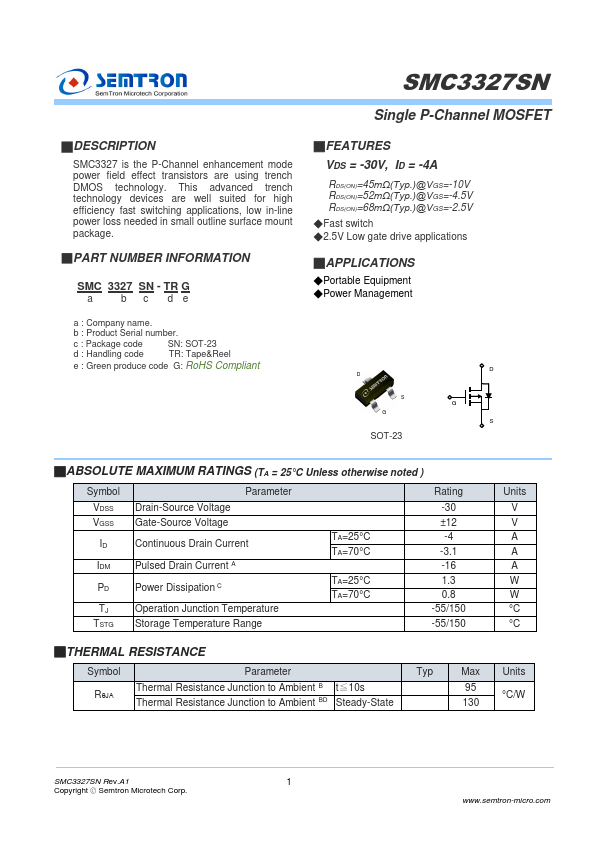

SMC3327SN Datasheet Preview — Preview of SMC3327SN PDF

Datasheet Details

Part number	SMC3327SN
Manufacturer	Semtron
File Size	344.08 KB
Description	Single P-Channel MOSFET
Datasheet	SMC3327SN-Semtron.pdf

SMC3327SN Product details

Description

SMC3327 is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. PART NUMBER INFORMATION SMC 3327 SN - TR G a b c de a : Company name.b : Product Serial number.c : Package code SN: SOT-23 d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant

Features

VDS = -30V, ID = -4A RDS(ON)=45mΩ(Typ. )@VGS=-10V RDS(ON)=52mΩ(Typ. )@VGS=-4.5V RDS(ON)=68mΩ(Typ. )@VGS=-2.5V.
Fast switch.
2.5V Low gate drive.
