SMC4425M

Single P-Channel MOSFET

SMC4425M Features

* VDS = -30V, ID = -14.7A RDS(ON) = 8.5mΩ(Typ.)@VGS = -20V RDS(ON) = 9.0mΩ(Typ.)@VGS = -10V RDS(ON) = 10.5mΩ(Typ.)@VGS = -6V RDS(ON) = 12.5mΩ(Typ.)@VGS = -4.5V

* Fast switch

* High power and current handling capability

* APPLICATIONS

* Load Switch

* LED Application

* DC-DC Power Mana

SMC4425M General Description

SMC4425 is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior ,fast switching performance, and withstand high energy pulse in the avalanche and commuta.

SMC4425M Datasheet (381.86 KB)

Rating: 1 ★ (4 votes)

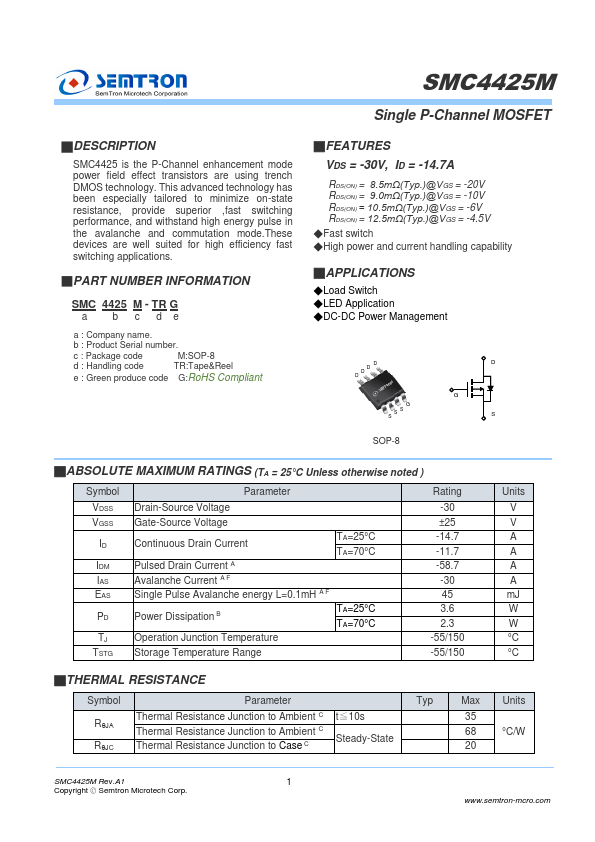

Preview of SMC4425M PDF

Datasheet Details

Part number:

SMC4425M

Manufacturer:

Semtron

File Size:

381.86 KB

Description:

Single p-channel mosfet.

📁 Related Datasheet

SMC4425 P-Channel Enhancement Mode MOSFET (Semtron)

SMC4420 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4420M Single N-Channel MOSFET (Semtron)

SMC4428 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4407 P-Channel Enhancement Mode MOSFET (Semtron)

SMC4458M Single N-Channel MOSFET (Semtron)

SMC40 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (MIC)

SMC400 Rolling code decoder (Systron Microelectronics)

SMC400 Rolling code decoder (Belling-Systron Microelectronics)

SMC401 Intelligent lithium battery charging controller (SHANGHAI BELLING)

TAGS

SMC4425M Single P-Channel MOSFET Semtron

Image Gallery

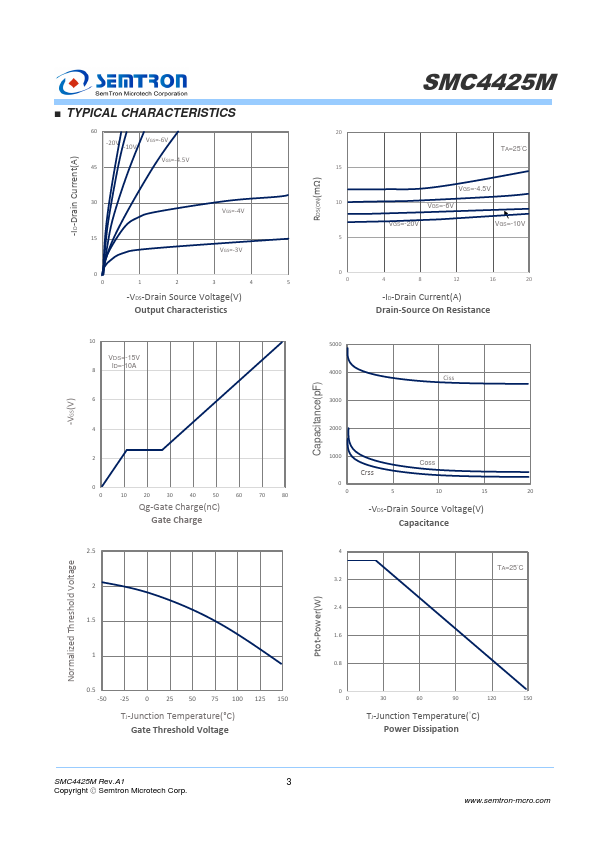

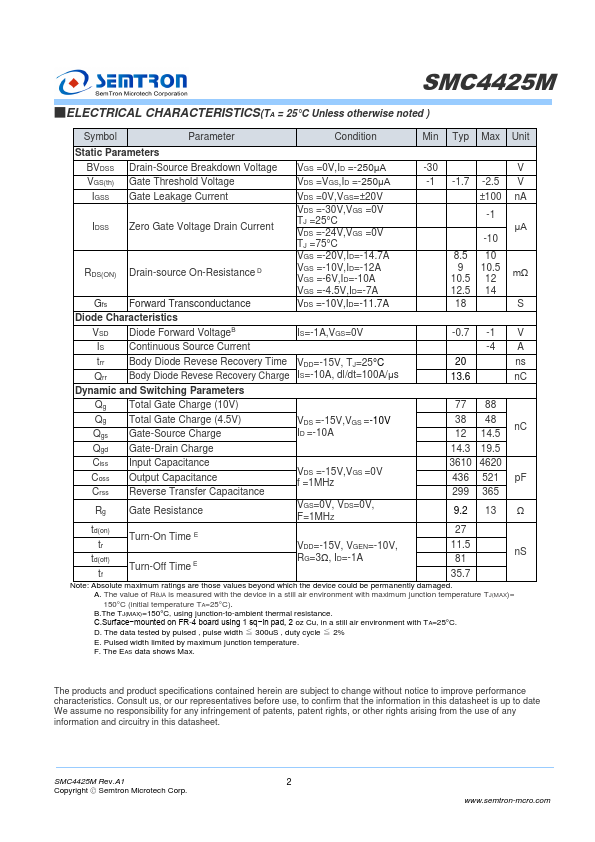

SMC4425M Datasheet Preview Page 2 SMC4425M Datasheet Preview Page 3
