SMC9435M Datasheet - Semtron

Single P-Channel MOSFET

SMC9435M Features

* VDS=-30V, ID=-6.5A RDS(ON)=40mΩ(Typ.)@VGS=-10V RDS(ON)=54mΩ(Typ.)@VGS=-4.5V

* Fast switch

* Low gate charge

* High power and current handling capability

* APPLICATIONS

* Load Switch

* Portable Equipment

* DC-DC Power Management D D D DD G G S S S S SOP-8

* ABSOLUTE MAXIMUM

SMC9435M General Description

SMC9435M is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior fast switching performance.These devices are well suited for high efficiency fast switch.

SMC9435M Datasheet (304.37 KB)

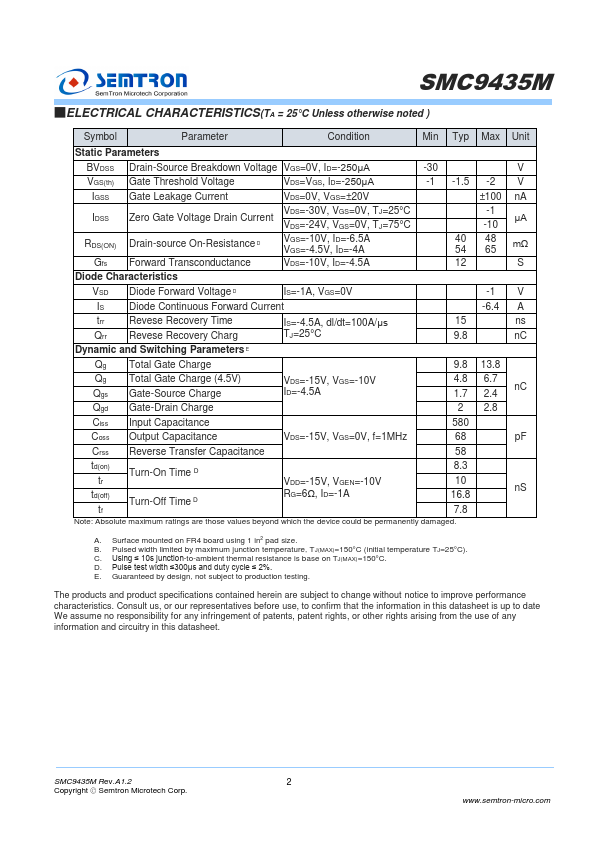

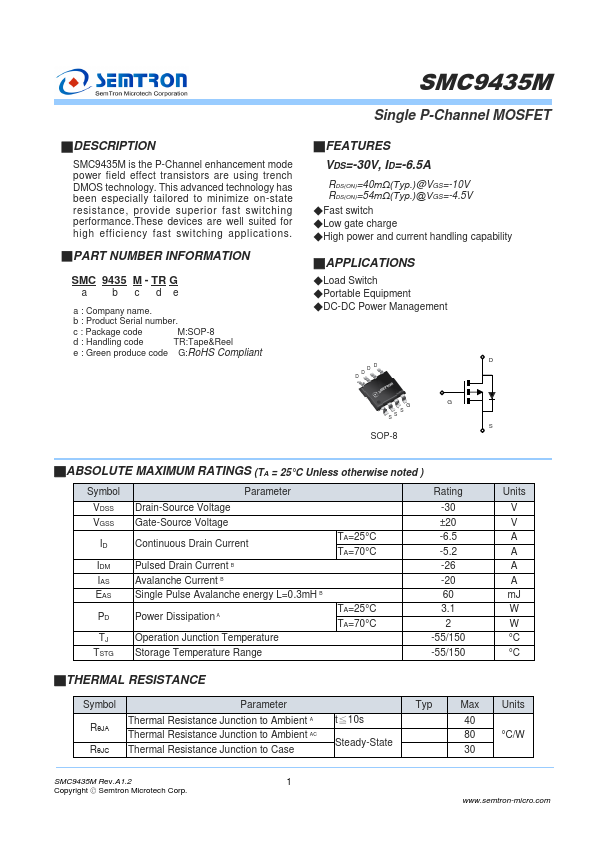

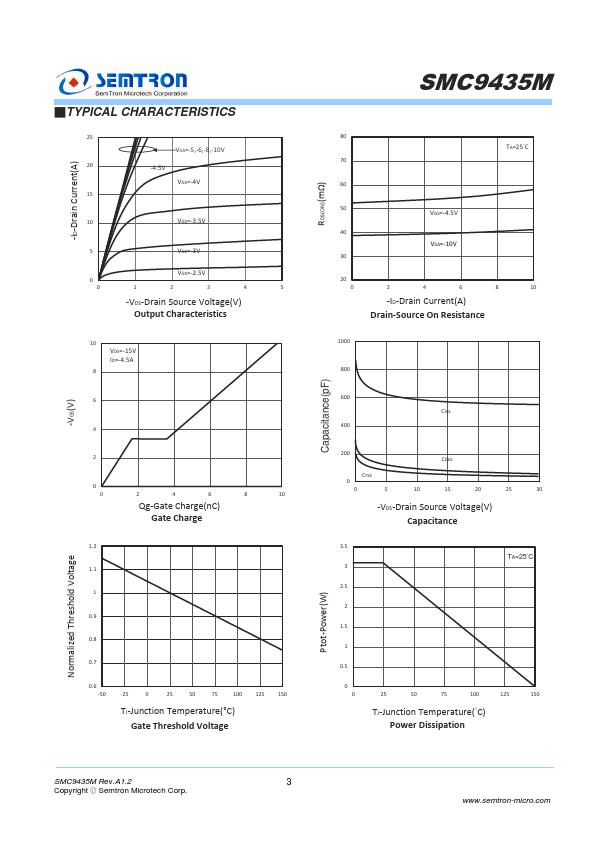

SMC9435M Datasheet Preview — Preview of SMC9435M PDF

Datasheet Details

Part number:

SMC9435M

Manufacturer:

Semtron

File Size:

304.37 KB

Description:

Single p-channel mosfet.
