* / BENEFITS:
* Hermetic, non-cavity glass package
* Category I Metallurgically bonded
* All devices are 100% hot solder dipped
* JAN/ JANTX/JANTXV available per MIL-PRF-19500/477 MAXIMUM RATINGS
* Operating and Storage Temperature: -65oC to +175oC
* Th
1N5806
Sensitron
215.70 KB
Ultrafast recovery rectifiers.

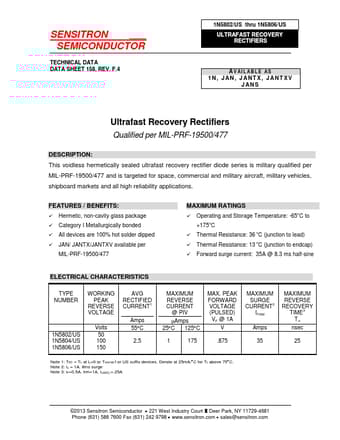

SENSITRON ___ SEMICONDUCTOR
TECHNICAL DATA DATA SHEET 158, REV. F.4
1N5802/US thru 1N5806/US StanUdLarTdRAFAST RECOVERY
RECTIFIERS
AVAILABLE AS 1N, J.
