SCP-5282-9 High Pulse Power Mil-STD-1275 SuperClamp

SCP-5282-9 Description

SENSITRON ____ SEMICONDUCTOR TECHNICAL DATA PART NUMBER: SCP-5282-9, REV B SCP-5282-9 High Pulse Power Mil-STD-1275 SuperClamp, 34V at 120A Key .

SCP-5282-9 Features

* Clamping below 34V DC for 40V, 100V, and 250V pulses
* High Pulse Power Capability
* Unidirectional
* Designed for safe paralleling

SCP-5282-9 Applications

* +28V DC systems
* Enables compliance with MIL-STD-1275 requirements for Injected and Emitted Surges and Spikes Protection Level:
* MIL-STD-1275 Compliant; 100V Surge withstanding for 100 msec with 0.5-ohm source impedance, clamping at 34V.
* MIL-STD-1275 Compliant; 40V Surge withs

📥 Download Datasheet

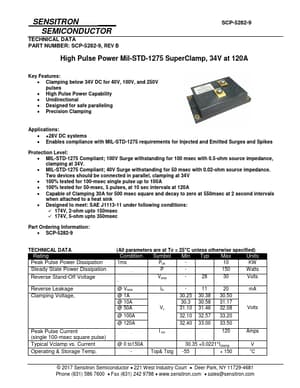

Preview of SCP-5282-9 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCP-5282-9
Manufacturer
Sensitron
File Size
134.32 KB
Datasheet
SCP-5282-9-Sensitron.pdf
Description
High Pulse Power Mil-STD-1275 SuperClamp
