SPD-7D28 - Solid State Power Controller Module

Sensitron

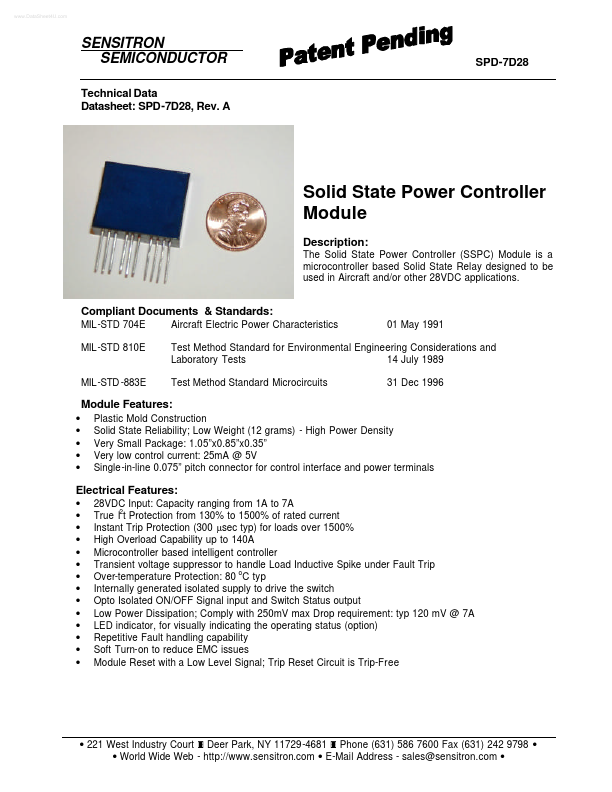

SPD-7D28 Datasheet Preview — Preview of SPD-7D28 PDF

Datasheet Details

Part number	SPD-7D28
Manufacturer	Sensitron
File Size	111.70 KB
Description	Solid State Power Controller Module
Datasheet	SPD-7D28_Sensitron.pdf

SPD-7D28 Product details

Description

The Solid State Power Controller (SSPC) Module is a microcontroller based Solid State Relay designed to be used in Aircraft and/or other 28VDC applications.

Features

Plastic Mold Construction Solid State Reliability; Low Weight (12 grams) - High Power Density Very Small Package: 1.05”x0.85”x0.35” Very low control current: 25mA @ 5V Single-in-line 0.075” pitch connector for control interface and power terminals Electrical Features: 28VDC Input: Capacity ranging from 1A to 7A 2 True I t Protection from 130% to 1500% of rated current Instant Trip Protection (300 µsec typ) for loads over 1500% High Overload Capability up to 140A Microcontroller based intellige.
