SPD25D28

(SPDxxD28) DC Solid State Power Controller Module

SPD25D28 Features

* Epoxy Shell Construction Solid State Reliability; Low Weight (20 gms) - High Power Density Same Pin Out as Industry Standard SSPCs in a Smaller Outline Extremely Low Power, No Derating Over the Full Temperature Range 28VDC Input with Very Low Voltage Drop; 60mV, typ. @15A True I2t Protection from 3

SPD25D28 General Description

The Solid State Power Controller (SSPC) Module is a microcontroller-based Solid State Relay rated upto 25A designed to be used in Army, Air force and Navy in 28V DC applications. This module has integrated current sensing with no derating over the full operating temperature range. The module is the.

SPD25D28 Datasheet (527.76 KB)

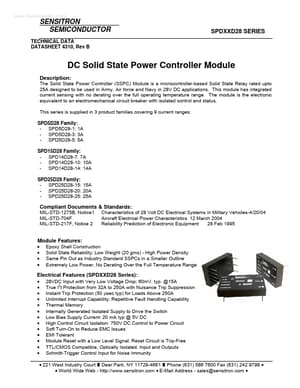

Preview of SPD25D28 PDF

Datasheet Details

Part number:

SPD25D28

Manufacturer:

Sensitron

File Size:

527.76 KB

Description:

(spdxxd28) dc solid state power controller module.
