SPM6M080-010D - Three-Phase MOSFET BRIDGE

The SPM6M080-010D by Sensitron is a Three-Phase MOSFET BRIDGE. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the SPM6M080-010D Three-Phase MOSFET BRIDGE datasheet (Sensitron).

Datasheet Details

Part number SPM6M080-010D
Manufacturer Sensitron
File Size 95.56 KB
Description Three-Phase MOSFET BRIDGE
Datasheet download datasheet SPM6M080-010D_Sensitron.pdf

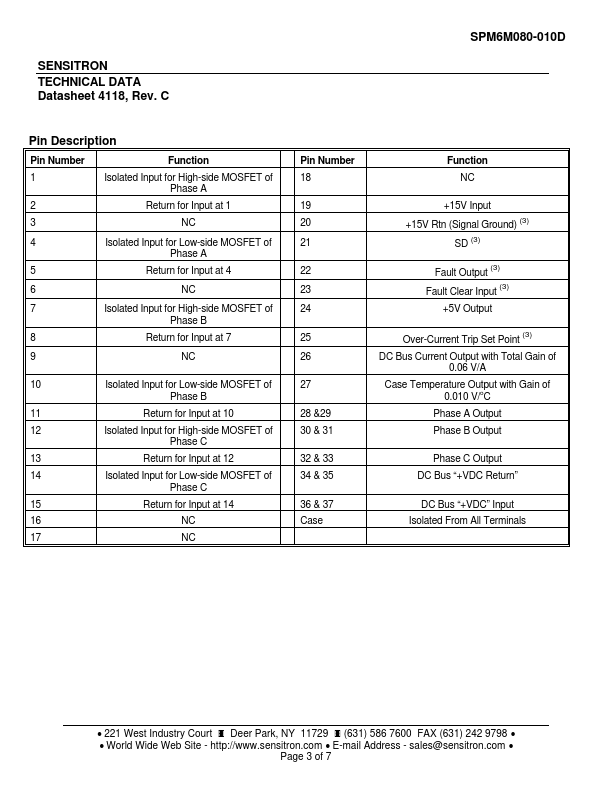

Additional preview pages of the SPM6M080-010D datasheet.

SPM6M080-010D Product details

Description

A 100 VOLT, 80 AMP, THREE PHASE MOSFET BRIDGE ELECTRICAL CHARACTERISTICS PER MOSFET DEVICE (Tj=250C UNLESS OTHERWISE SPECIFIED) SYMBOL MIN TYP MAX UNIT PARAMETER MOSFET SPECIFICATIONS Drain-to-Source Breakdown Voltage ID = 500 µA, VGS = 0V Continuous Drain Current TC = 25 OC O BVDSS ID IDM VGS IGSS ICSS 100 - - 80 70 200 +/-20 +/- 200 V A A V nA TC = 90 C Pulsed Drain Current, Pulse Width limited to 1 msec Gate to Source Voltage Gate- Source Leakage Current , VGE = +/-20V www.DataSheet
