SXX225UF-A, SXX175UF-A - HERMETIC ULTRAFAST DIODE

Name: SXX225UF-A
SKU: SXX225UF-A-1385728

Sensitron

📥 Download Datasheet

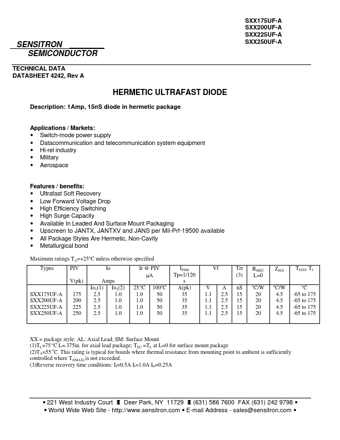

SXX225UF-A Datasheet Preview — This datasheet PDF includes multiple part numbers: SXX225UF-A, SXX175UF-A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SXX225UF-A, SXX175UF-A
Manufacturer	Sensitron
File Size	40.89 KB
Description	HERMETIC ULTRAFAST DIODE
Datasheet	SXX175UF-A-Sensitron.pdf
Note	This datasheet PDF includes multiple part numbers: SXX225UF-A, SXX175UF-A. Please refer to the document for exact specifications by model.

SXX225UF-A Product details

Description

1Amp, 15nS diode in hermetic package SXX175UF-A SXX200UF-A SXX225UF-A SXX250UF-A Applications / Markets: Switch-mode power supply Datacommunication and telecommunication system equipment Hi-rel industry Military Aerospace

Features

/ benefits:.
Ultrafast Soft Recovery.
Low Forward Voltage Drop.
High Efficiency Switching.
High Surge Capacity.
Available In Leaded And Surface Mount Packaging.
Upscreen to JANTX, JANTXV and JANS per Mil-Prf-19500 available.
All Package Styles Are Hermetic, Non-Cavity.
Metallurgical bond Maximum ratings TA=+25oC unless otherwise specified Types PIV Io SXX175UF-A SXX200UF-A SXX225UF-A SXX250UF-A V(pk) 175 200 225 250 A.
