SXX225UF3A, SXX175UF3A - HERMETIC ULTRAFAST DIODE

Name: SXX225UF3A
SKU: SXX225UF3A-1385660

Sensitron

📥 Download Datasheet

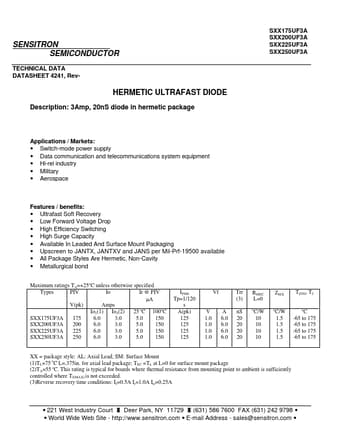

SXX225UF3A Datasheet Preview — This datasheet PDF includes multiple part numbers: SXX225UF3A, SXX175UF3A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SXX225UF3A, SXX175UF3A
Manufacturer	Sensitron
File Size	45.83 KB
Description	HERMETIC ULTRAFAST DIODE
Datasheet	SXX175UF3A-Sensitron.pdf
Note	This datasheet PDF includes multiple part numbers: SXX225UF3A, SXX175UF3A. Please refer to the document for exact specifications by model.

SXX225UF3A Product details

Description

3Amp, 20nS diode in hermetic package SXX175UF3A SXX200UF3A SXX225UF3A SXX250UF3A Applications / Markets: Switch-mode power supply Data communication and telecommunications system equipment Hi-rel industry Military Aerospace

Features

/ benefits:.
Ultrafast Soft Recovery.
Low Forward Voltage Drop.
High Efficiency Switching.
High Surge Capacity.
Available In Leaded And Surface Mount Packaging.
Upscreen to JANTX, JANTXV and JANS per Mil-Prf-19500 available.
All Package Styles Are Hermetic, Non-Cavity.
Metallurgical bond Maximum ratings TA=+25oC unless otherwise specified Types PIV Io Ir @ PIV µA V(pk) Amps Io1(1) Io2(2) 25 oC 100oC SXX175UF3A 175.
