SX05 (SX01 / SX05) Pressure Sensor

SX05 Description

SX Series Pressure sensors .
The SX series of pressure sensors provides the most cost effective method of measuring pressures up to 300 psi.

SX05 Features

* 01 to 0300 psi
* Absolute, differential and gage devices
* High impedance bridge

SX05 Applications

* where the sensing element is to be integral to the OEM equipment. Scale: 1 cm ½ inch APPLICATIONS
* Industrial controls
* Pneumatic controls
* Medical instrumentation
* Barometry EQUIVALENT CIRCUIT Vs These packages can be o-ring sealed, epoxied, and/or clamped onto a pressure fit

📥 Download Datasheet

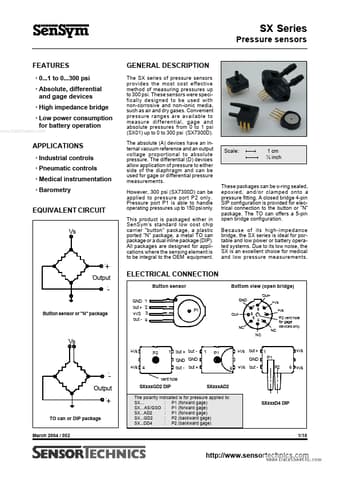

SX05 Datasheet Preview — Preview of SX05 PDF

Datasheet Details

Part number: SX05
Manufacturer: Sensym
File Size: 448.96 KB
Datasheet: SX05_Sensym.pdf
Description: (SX01 / SX05) Pressure Sensor
