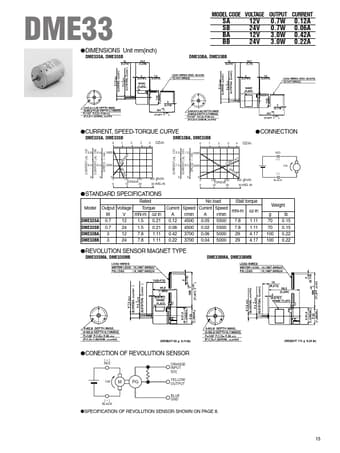

DME33 DIMENSIONS Unit mm(inch) DME33SA, DME33SB MODEL CODE VOLTAGE OUTPUT CURRENT SA 12V 0.7W 0.12A SB 24V 0.7W 0.06A BA 12V 3.0W 0.42A BB 24V 3.0W 0.22A DME33BA, DME33BB CURRENT, SPEED-TORQUE CURVE CONNECTION DME33SA, DME33SB DME33BA, DME33BB 0 1 2 3 4 OZ In 0 1 2 3 4 OZ In CURRENT (A) : 12V CURRENT (A) : 24V SPEED r / min CURRENT CURRENT (A) : 12V CURRENT (A) : 24V SPEED r / min 0.8 0.4 5000 0.4 0.2 2500 SPEED 00 0 0 100 200 300 gf cm 0 TO
Datasheet Details
Part number:
DME33SA
Manufacturer:
Servo
File Size:
648.17 KB
Description:
Dc brush motors.
