DME44S50G, DME44SA Datasheet - Servo

DME44S50G - DC Brush Motors

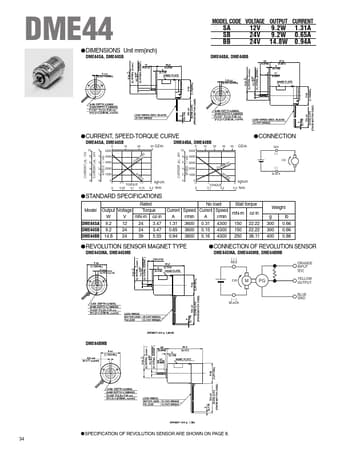

DME44 DIMENSIONS Unit mm(inch) DME44SA, DME44SB MODEL CODE VOLTAGE OUTPUT CURRENT SA 12V 9.2W 1.31A SB 24V 9.2W 0.65A BB 24V 14.8W 0.94A DME44BA, DME44BB CURRENT, SPEED-TORQUE CURVE CURRENT (A) : 12V CURRENT (A) : 24V SPEED r / min CURRENT (A) : 24V SPEED r / min DME44SA, DME44SB 0 10 10 5 5000 8 4 4000 6 3 3000 4 2 2000 20 30 OZ In CURRENT DME44BA, DME44BB 0 10 20 10 5000 30 40 8 4000 6 3000 4 2000 CURRENT OZ In 2 1 1000 SPEED 0 0 0 .
