DME4101, DME3927 Datasheet - Skyworks

DME4101 Silicon Beamless Schottky Diodes

Skyworks beamless diode family is designed for a high degree of device reliability in both commercial and industrial uses. The diodes are designed to offer the utmost in performance as well as achieving price sensitive cost targets for commercial systems. A.

DME4101 Features

* Mechanically rugged design

* Three barrier heights for optimized mixer performance

* Wide product range: series pair, ring, bridge, and eight-diode rings

* Use in ring or crossover designs in double balanced mixers

* Virtually any LO requirement can be met with choice of barrie

DME3927-Skyworks.pdf

This datasheet PDF includes multiple part numbers: DME4101, DME3927. Please refer to the document for exact specifications by model.

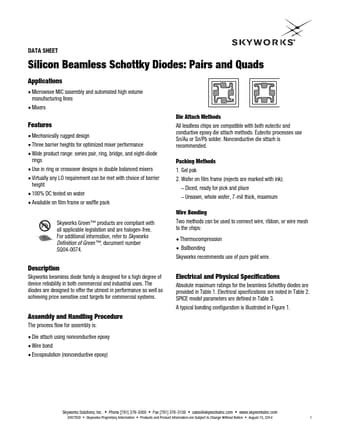

DME4101 Datasheet Preview Page 2 DME4101 Datasheet Preview Page 3

Datasheet Details

Part number:

DME4101, DME3927

Manufacturer:

Skyworks

File Size:

467.00 KB

Description:

Silicon beamless schottky diodes.

Note:

This datasheet PDF includes multiple part numbers: DME4101, DME3927.
Please refer to the document for exact specifications by model.
