D6002 Datasheet - Shaoxing Silicore Technology

Radio Controlled Receiver

D6002 Features

* for universal applications. The BIP2 technology makes all the above features possible for very low cost applications. D6002 Outline Drawing FEATURE z z z z z z z z z Single chip straight through receiver. Low power battery applications(1.1~3.6V) Very low power consumption. Power down modus. Wide

D6002 General Description

The D6002 is a bipolar integrated straight through receiver circuit in the frequency range fro m 40kHz up to 200kHz with ASK modulation. The IC receivers and demodulates time code signals transmitted by DCF77,MSF , WWVB and G2AS. Th e devices is designed for radio controlled clock applications with .

D6002 Datasheet (104.07 KB)

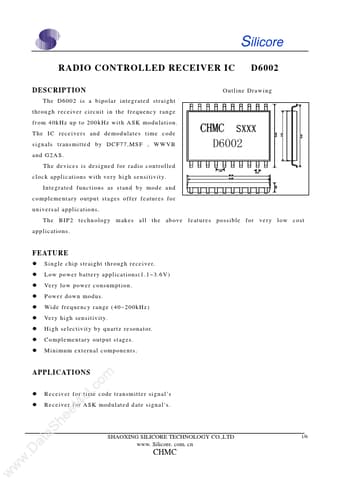

D6002 Datasheet Preview — Preview of D6002 PDF

Datasheet Details

Part number:

D6002

Manufacturer:

Shaoxing Silicore Technology

File Size:

104.07 KB

Description:

Radio controlled receiver.
