SCY1 Datasheet - Sharma Electro Components

SCY1 Sharma Ceramic Capacitors

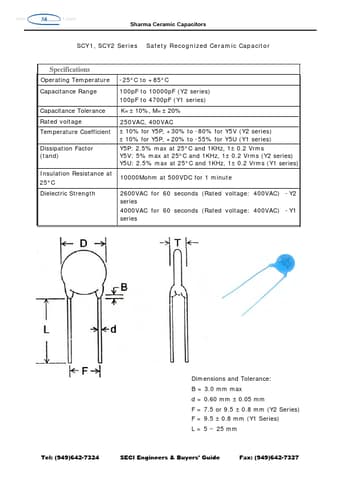

www.DataSheet4U.com Sharma Ceramic Capacitors SCY1, SCY2 Series Safety Recognized Ceramic Capacitor Specifications Operating Temperature Capacitance Range Capacitance Tolerance Rated voltage Temperature Coefficient Dissipation Factor (tand) Insulation Resistance at 25° C Dielectric Strength -25° C to +85° C 100pF to 10000pF (Y2 series) 100pF to 4700pF (Y1 series) K=±10%, M=±20% 250VAC, 400VAC ±10% for Y5P, +30% to -80% for Y5V (Y2 series) ±10% for Y5P, +20% to -55% for Y5U (Y1 series) Y5P: 2.

SCY1_SharmaElectroComponents.pdf
