WS10.5xxxx - Sharma Potentiometers

Product Overview

Sharma Electro Components

📥 Download Datasheet

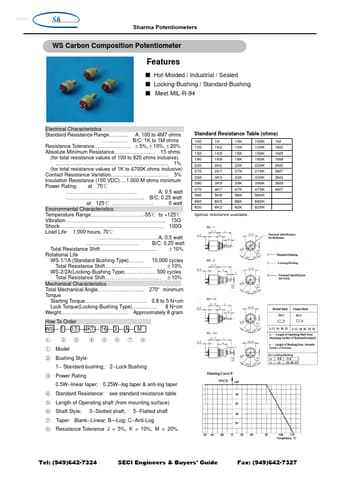

WS10.5xxxx Sharma Potentiometers by Sharma Electro Components - Datasheet Preview — Datasheet preview – WS10.5xxxx

Datasheet Details

Part number	WS10.5xxxx
Manufacturer	Sharma Electro Components
File Size	461.72 KB
Description	Sharma Potentiometers
Datasheet	WS10.5xxxx Datasheet
Note	This datasheet PDF includes multiple part numbers: WS10.5xxxx, WS105xxxx. Please refer to the document for exact specifications by model.
Additional preview pages of the WS10.5xxxx datasheet.

Product details

Features

Hot-Molded / Industrial / Sealed.
Locking-Bushing / Standard-Bushing.
Meet MIL-R-94 Electrical Characteristics Standard Resistance Range………. . A: 100 to 4M7 ohms …………… B/C: 1K to 1M ohms Resistance Tolerance…………. ……… ±5%,±10%,±20% Absolute Minimum Resistance…………………… 15 ohms (for total resistance values of 100 to 820 ohms inclusive) ………………………………………………………… 1% (for total resistance values of 1K to 4700K ohms inclusive) Contact Resistance Variation………. …………………… 5% Insulation Resistance.
