WS100P4SMA-B - Power Transient Voltage Suppressor

WAYON

📥 Download Datasheet

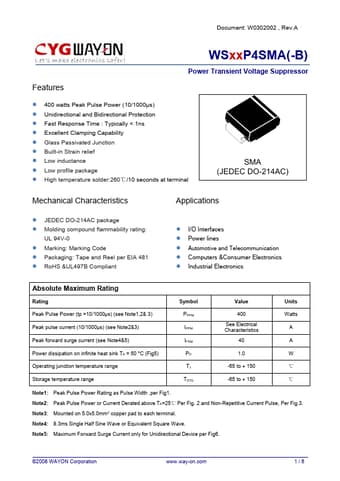

WS100P4SMA-B Datasheet Preview — Preview of WS100P4SMA-B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WS100P4SMA-B
Manufacturer	WAYON
File Size	710.97 KB
Description	Power Transient Voltage Suppressor
Datasheet	WS100P4SMA-B-WAYON.pdf

WS100P4SMA-B Product details

Features

WSxxP4SMA(-B) Power Transient Voltage Suppressor.
400 watts Peak Pulse Power (10/1000μs).
Unidirectional and Bidirectional Protection.
Fast Response Time : Typically < 1ns.
Excellent Clamping Capability.
Glass Passivated Junction.
Built-in Strain relief.
Low inductance.
Low profile package.
High temperature solder:260℃/10 seconds at terminal Mechanical Characteristics.
