GL513F - TO-18 Type Infrared Emitting Diode

Product Overview

Sharp Electrionic Components

📥 Download Datasheet

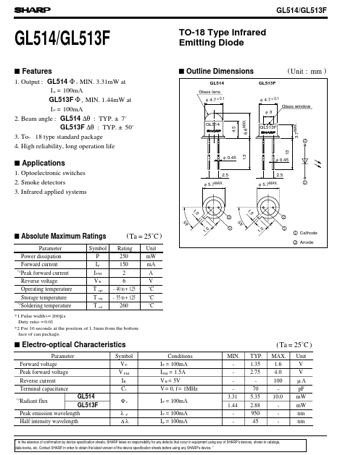

GL513F TO-18 Type Infrared Emitting Diode by Sharp Electrionic Components - Datasheet Preview — Datasheet preview – GL513F

Datasheet Details

Part number	GL513F
Manufacturer	Sharp Electrionic Components
File Size	45.21 KB
Description	TO-18 Type Infrared Emitting Diode
Datasheet	GL513F Datasheet
Additional preview pages of the GL513F datasheet.

Product details

Features

1. Output : GL514 Φ e MIN. 3.31mW at I F = 100mA GL513F Φ e MIN. 1.44mW at I F = 100mA 2. Beam angle : GL514 ∆θ : TYP. ± 7˚ GL513F ∆θ : TYP. ± 50˚ 3. To- 18 type standard package 4. High reliability, long operation life TO-18 Type Infrared Emitting Diode s Outline Dimensions GL514 Glass lens φ 4.7 ± 0.1 φ 4.7 ± 0.1 Glass window φ3 4.5 GL513F 3.7MAX. 2 φ 0.45 13 φ 0.45 2.5 φ 5.7MAX. 1 2 1 1 Cathode 2 Anode GL514 6.6MAX. GL513F ( Unit : mm ) s.
