GL537, 5mm Resin Mold Type Infrared Emitting Diode

GL537/GL538 GL537/GL538 s .

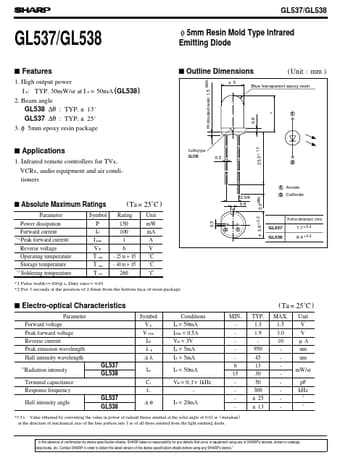

datasheet Preview Page 1 from Datasheet4u.com

GL537_SharpElectrionicComponents.pdf

GL537 Datasheet Preview — Preview of GL537 PDF

Datasheet Details

Part number:

GL537

Manufacturer:

Sharp Electrionic Components

File Size:

37.80 KB

Description:

5mm Resin Mold Type Infrared Emitting Diode

Features

* 1. High output power I E : TYP. 30mW/sr at I F = 50mA (GL538 ) 2. Beam angle GL538 ∆θ : TYP. ± 13˚ GL537 ∆θ : TYP. ± 25˚ 3. φ 5mm epoxy resin package φ 5mm Resin Mold Type Infrared Emitting Diode s Outline Dimensions MAX. ( Unit : mm ) φ 5 Blue transparent epoxy resin Protruded resin 1.5

Applications

* Cutting type GL538 1.0 2 1 Anode s Absolute Maximum Ratings Parameter Power dissipation Forward current
* 1 Peak forward current Reverse voltage Operating temperature Storage temperature
* 2 Soldering temperature Symbol P IF I FM VR T opr T stg T sol ( Ta = 25˚C ) Rating 150 100 1 6 - 25
