GL538 - 5mm Resin Mold Type Infrared Emitting Diode

Product Overview

Sharp Electrionic Components

📥 Download Datasheet

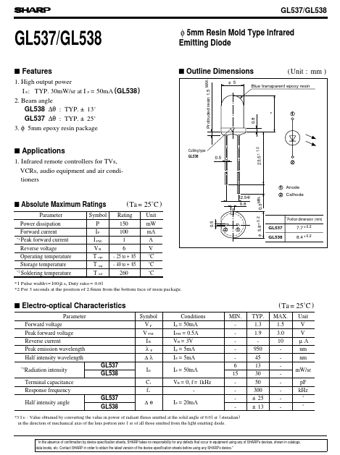

GL538 5mm Resin Mold Type Infrared Emitting Diode by Sharp Electrionic Components - Datasheet Preview — Datasheet preview – GL538

Datasheet Details

Part number	GL538
Manufacturer	Sharp Electrionic Components
File Size	37.80 KB
Description	5mm Resin Mold Type Infrared Emitting Diode
Datasheet	GL538 Datasheet
Additional preview pages of the GL538 datasheet.

Product details

Features

1. High output power I E : TYP. 30mW/sr at I F = 50mA (GL538 ) 2. Beam angle GL538 ∆θ : TYP. ± 13˚ GL537 ∆θ : TYP. ± 25˚ 3. φ 5mm epoxy resin package φ 5mm Resin Mold Type Infrared Emitting Diode s Outline Dimensions MAX. ( Unit : mm ) φ 5 Blue transparent epoxy resin Protruded resin 1.5.
0.8 1 1. Infrared remote controllers for TVs, VCRs, audio equipment and air conditioners 0.5 23.5± s.
