GL8ED5 - 1.9X3.9mm/ Rectangle Type/ Milky Diffusion/ Dichromatic LED Lamps for Indicator

📥 Download Datasheet

Datasheet preview – GL8ED5

Datasheet Details

Part number GL8ED5
Manufacturer Sharp Electrionic Components
File Size 226.08 KB
Description 1.9X3.9mm/ Rectangle Type/ Milky Diffusion/ Dichromatic LED Lamps for Indicator
Datasheet download datasheet GL8ED5 Datasheet
Additional preview pages of the GL8ED5 datasheet.

📁 Similar Datasheet

  • GL8EG26 - 2.055.0mm/ Rectangle Type(Flangeless)/ Colored Diffusion LED Lamps for Indicator (ETC)
  • GL800HT25 - USB 2.0 UTMI Compliant Transceiver IP Core (GENESYS LOGIC)
  • GL8088s - Navigation Receiver Module (HABNA)
  • GL8101 - Programmable Single Channel Digital Synchronization PWM Controller (Gleam)
  • GL811E - USB 2.0 to ATA / ATAPI Bridge Controller (ETC)
  • GL811E - USB 2.0 to ATA / ATAPI Bridge Controller (GENESYS LOGIC)
  • GL811S - USB 2.0 to ATA / ATAPI Bridge Controller (GENESYS LOGIC)
  • GL811USB - USB 2.0 to ATA / ATAPI Bridge Controller (ETC)
  • GL813 - USB 2.0 CompactFlash Card Reader Controller (ETC)
  • GL816 - USB 2.0 Flash Card Reader Controller (ETC)
Other Datasheets by Sharp Electrionic Components
  • GL8HD23 - 2.0X4.5mm/ Rectangle Type/ Colored Diffusion LED Lamps for Indicator
  • GL8HD48 - 3.0X3.0mm/ Square Type/ Colored Diffusion LED Lamps for Indicator
  • GL8HD5 - 2.9X4.9mm/ Rectangle Type/ Colored Transparency LED Lamps for Backlight/Indicator
  • GL8PR2 - 2.5X5.0mm/ Arch Type/ Colored Diffusion LED Lams for Indicator
  • GL8PR22 - 5.0X5.0mm/ Square Type/ Colored Diffusion LED Lamps for Indicator
  • GL8PR25 - 2.0X3.2mm/ Rectangle Type/ Colored Transparency LED Lamps for Backlight/Indicator
  • GL8PR26 - 2.0X5.0mm/ Rectangle Type(Flangeless)/ Colored Diffusion LED Lamps for Indicator
  • GL8PR28 - Isosceles Triangle/ Colored Diffusion LED Lamps for Direction Indicator

Full PDF Text Transcription

Click to expand full text

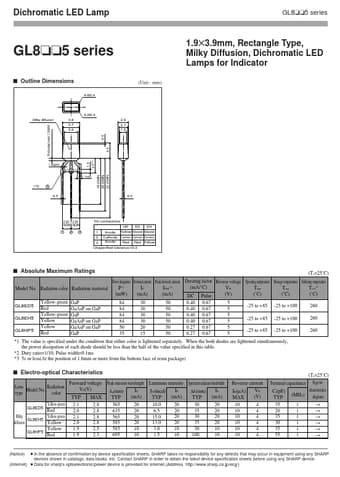

Dichromatic LED Lamp GL8tt5 series GL8tt5 series s Outline Dimensions 4-R0.4 1.9!3.9mm, Rectangle Type, Milky Diffusion, Dichromatic LED Lamps for Indicator (Unit : mm) 4-R0.4 Milky diffusion Protruded resin 1.5MAX 4.9 4.7 3.9 0.4 2.9 2.7 1.9 1.0MAX 2.39 NOM 2.39 NOM 4.3±0.5 1.0 1.1MAX (*3) A 0.5 18.0MIN 20.0MIN 22.0MIN 4.5 0.5 2.54 2.54 NOM NOM 1 2 3 Pin connections ED EH HP 1 Anode Yellow Yellow-green Yellow-green 2 Cathode Common Common Common Anode Red Red Yellow 3 Unspecified tolerance:±0.2 s Absolute Maximum Ratings Model No.
