GL8HD23 - 2.0X4.5mm/ Rectangle Type/ Colored Diffusion LED Lamps for Indicator

📥 Download Datasheet

Datasheet preview – GL8HD23

Datasheet Details

Part number GL8HD23
Manufacturer Sharp Electrionic Components
File Size 95.63 KB
Description 2.0X4.5mm/ Rectangle Type/ Colored Diffusion LED Lamps for Indicator
Datasheet download datasheet GL8HD23 Datasheet
Additional preview pages of the GL8HD23 datasheet.

📁 Similar Datasheet

  • GL8HD26 - 2.055.0mm/ Rectangle Type(Flangeless)/ Colored Diffusion LED Lamps for Indicator (ETC)
  • GL8HS26 - 2.055.0mm/ Rectangle Type(Flangeless)/ Colored Diffusion LED Lamps for Indicator (ETC)
  • GL8HY26 - 2.055.0mm/ Rectangle Type(Flangeless)/ Colored Diffusion LED Lamps for Indicator (ETC)
  • GL800HT25 - USB 2.0 UTMI Compliant Transceiver IP Core (GENESYS LOGIC)
  • GL8088s - Navigation Receiver Module (HABNA)
  • GL8101 - Programmable Single Channel Digital Synchronization PWM Controller (Gleam)
  • GL811E - USB 2.0 to ATA / ATAPI Bridge Controller (ETC)
  • GL811E - USB 2.0 to ATA / ATAPI Bridge Controller (GENESYS LOGIC)
  • GL811S - USB 2.0 to ATA / ATAPI Bridge Controller (GENESYS LOGIC)
  • GL811USB - USB 2.0 to ATA / ATAPI Bridge Controller (ETC)
Other Datasheets by Sharp Electrionic Components
  • GL8HD48 - 3.0X3.0mm/ Square Type/ Colored Diffusion LED Lamps for Indicator
  • GL8HD5 - 2.9X4.9mm/ Rectangle Type/ Colored Transparency LED Lamps for Backlight/Indicator
  • GL8ED5 - 1.9X3.9mm/ Rectangle Type/ Milky Diffusion/ Dichromatic LED Lamps for Indicator
  • GL8PR2 - 2.5X5.0mm/ Arch Type/ Colored Diffusion LED Lams for Indicator
  • GL8PR22 - 5.0X5.0mm/ Square Type/ Colored Diffusion LED Lamps for Indicator
  • GL8PR25 - 2.0X3.2mm/ Rectangle Type/ Colored Transparency LED Lamps for Backlight/Indicator
  • GL8PR26 - 2.0X5.0mm/ Rectangle Type(Flangeless)/ Colored Diffusion LED Lamps for Indicator
  • GL8PR28 - Isosceles Triangle/ Colored Diffusion LED Lamps for Direction Indicator

Full PDF Text Transcription

Click to expand full text

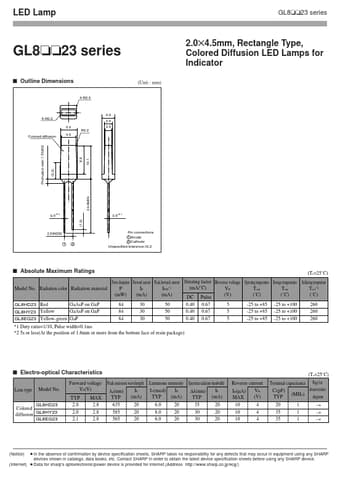

LED Lamp GL8tt23 series GL8tt23 series s Outline Dimensions 4-R0.4 2.0!4.5mm, Rectangle Type, Colored Diffusion LED Lamps for Indicator (Unit : mm) 4.0 4-R0.2 5.0 R0.2 Colored diffusion Protruded resin 1.5MAX 4.5 2.5 2.0 8.6 (5.0) 0.5±0.1 (1.0) 24.0MIN 10.1 0.5±0.1 2.54NOM 1 2 Pin connections 1 Anode 2 Cathode Unspecified tolerance:±0.2 s Absolute Maximum Ratings Model No. Radiation color Radiation material GaAsP on GaP GL8HD23 Red GaAsP on GaP GL8HY23 Yellow GL8EG23 Yellow-green GaP Power dissipation Forward current Peak forward current P IF IFM*1 (mW) (mA) (mA) 84 84 84 30 30 30 50 50 50 (Ta=25˚C) Derating factor Reverse voltage Operating temperature Storage temperature Soldering temperature (mA/˚C) VR Topr Tstg Tsol*2 (V) (˚C) (˚C) (˚C) DC Pulse 0.40 0.40 0.40 0.67 0.67 0.
