GP2Y3A003K0F Datasheet - Sharp Electrionic Components

GP2Y3A003K0F - Optoelectronic Device

The GP2Y3A003K0F is a distance measuring sensor with integrated signal processing and analog voltwww.DataSheet4U.com age output.

Figure 1.

Pinout GND VCC PSD SIGNAL PROCESSING CIRCUIT VOLTAGE REGULATOR VIN OSCILLATOR CIRCUIT OUTPUT CIRCUIT LED 1 Vo 5 LEDs LED DRIVE CIRCUIT LED 1 5 TRANSIS

GP2Y3A003K0F Features

* Trigger point set at factory to 25°

* Analog output

* Effective Range: 40 to 300 cm

* Typical response time: 16.5 ms

* Typical start up delay: 21.5 ms PIN NUMBER 1 → 9 CONNECTOR SIGNAL PIN 1-5 6 7 8 9 SIGNAL NAME Signal inputs for selecting LED 1 - 5 VO GND

GP2Y3A003K0F_SharpElectrionicComponents.pdf

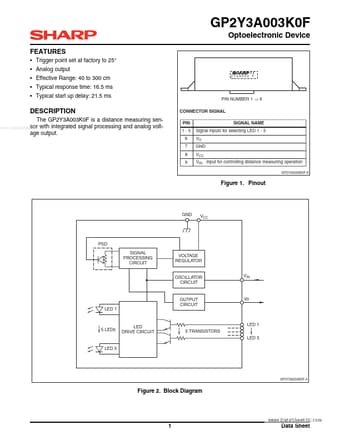

Preview of GP2Y3A003K0F PDF
