LH28F008SC-V Datasheet PDF - Sharp Electrionic Components 8 M-bit (1 MB x 8) Smart 5 Specs

LH28F008SC-V - 8 M-bit (1 MB x 8) Smart 5

Datasheet Summary

Description

The LH28F008SC-V/SCH-V flash memories with Smart 5 technology are high-density, low-cost, nonvolatile, read/write storage solution for a wide range of applications.

Features

Absolute protection with VPP = GND.
Flexible block locking.
Block erase/byte write lockout during power transitions.
SRAM-compatible write interface.
High-density symmetrically-blocked architecture.
Sixteen 64 k-byte erasable blocks.
Enhanced cycling capability.
100 000 block erase cycles.
1.6 million block erase cycles/chip.
Low power management.
Deep power-down mode.
Automatic power sav.

Datasheet Details

Part number	LH28F008SC-V
Manufacturer	Sharp Electrionic Components
File Size	266.95 KB
Description	8 M-bit (1 MB x 8) Smart 5
Datasheet	LH28F008SC-V Datasheet

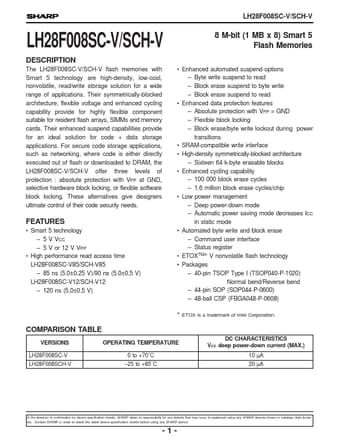

Additional preview pages of the LH28F008SC-V datasheet.

📁 Similar Datasheet

LH28F008SC - 8M (1M x 8) Flash Memory (Sharp)

LH28F008SCH-L - 8-MBIT(1 MB x 8) SmartVoltage Flash MEMORY (Sharp)

LH28F008SCHT-85 - 8-MBIT(1 MB x 8) SmartVoltage Flash MEMORY (Sharp)

LH28F008SCHT-TE - Flash Memory 8M (1Mb x 8) (Sharp Microelectronics)

LH28F008SCR-L85 - Flash Memory (Sharp)

LH28F008SCT-L12 - Flash Memory (Sharp)

LH28F008SA - 8M (1M x 8) Flash Memory (Sharp)

LH28F008SAHR-85 - 8 MBIT(1 MBIT x 8)FLASH MEMORY (Sharp)

LH28F008SAR-85 - 8M Flash Memory 1M (x8) (Sharp)

LH28F008SAT-K85 - 8 MBIT(1 MBIT x 8) FLASH MEMORY (Sharp)

Full PDF Text Transcription

Click to expand full text

LH28F008SC-V/SCH-V LH28F008SC-V/SCH-V DESCRIPTION The LH28F008SC-V/SCH-V flash memories with Smart 5 technology are high-density, low-cost, nonvolatile, read/write storage solution for a wide range of applications. Their symmetrically-blocked architecture, flexible voltage and enhanced cycling capability provide for highly flexible component suitable for resident flash arrays, SIMMs and memory cards. Their enhanced suspend capabilities provide for an ideal solution for code + data storage applications.
