LT251A - GaAs Hall IC

Datasheet Summary

Features

  • s Outline Dimensions 2.7±0.3 ¡Operation by small magnet due to high sensitivity Operating point.

📥 Download Datasheet

Datasheet preview – LT251A

Datasheet Details

Part number LT251A
Manufacturer Sharp Electrionic Components
File Size 23.87 KB
Description GaAs Hall IC
Datasheet download datasheet LT251A Datasheet
Additional preview pages of the LT251A datasheet.

📁 Similar Datasheet

  • LT25 - projector (NEC)
  • LT2005-S - Current Transducer LT 2005-S (LEM)
  • LT201 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT202 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT203 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT204 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT205 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT206 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT207 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT2078 - Micropower/ Dual and Quad/ Single Supply/ Precision Op Amps (Linear Technology)
Other Datasheets by Sharp Electrionic Components
  • LT253A - GaAs Hall IC
  • LT202A - GaAs Hall IC for Fan Motor
  • LT205A - GaAs Hall IC for Fan Motor with Variable Speed by Temperature
  • LT230 - GaAs Hall IC
  • LT230A - GaAs Hall IC
  • LT260A - GaAs Hall IC
  • LT261A - GaAs Hall IC
  • LT262A - GaAs Hall IC

Full PDF Text Transcription

Click to expand full text

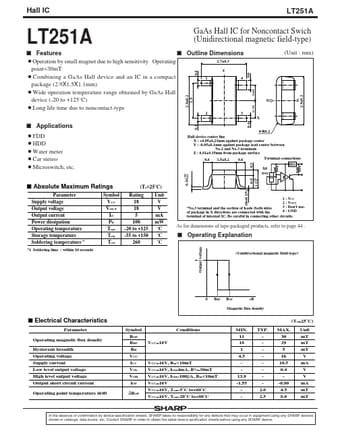

Hall IC LT251A LT251A 2.9±0.2 1.9 GaAs Hall IC for Noncontact Swich (Unidirectional magnetic field-type) (Unit : mm) 2 0.4 3 0.4 0.95 s Features s Outline Dimensions 2.7±0.3 ¡Operation by small magnet due to high sensitivity Operating point<30mT Y ¡ Combining a GaAs Hall device and an IC in a compact 1 4 package (2.9X1.5X1.1mm) ¡Wide operation temperature range obtained by GaAs Hall device (-20 to +125˚C) ¡Long life time due to noncontact-type 0.4 0.6 0.85 S Z X s Applications ¡FDD ¡HDD ¡Water meter ¡Car stereo ¡Microswitch, etc. 0.16+0.10 -0.06 1.1-0.1 0.8 +0.2 4-R0.2 Hall device center line X : +0.05±0.23mm against package center Y : -0.05±0.1mm against package lead center between No.2 and No.3 terminals Z : 0.81±0.15mm from package surface Terminal connections 1.5±0.
