LZ0P3611

1/4-type Built-in Lens Color CCD Area Sensors

LZ0P3611 Features

* Number of effective pixels : 512 (H) x 492 (V)

* Number of optical black pixels

* Horizontal : 2 front and 28 rear

* Pixel pitch : 7.2 µm (H) x 5.6 µm (V)

* Mg, G, Cy, and Ye complementary color filters

* Low fixed-pattern noise and lag

* Blo

LZ0P3611 General Description

The LZ0P3610/11/12∫/15∫ are 1/4-type (4.5 mm) 270 000-pixel built-in lens color CCD (chargecoupled device) area sensors. With their small lens and WLCC-type flat package, it is possible to make ultra small color camera easily. 1/4-type Built-in Lens Color CCD Area Sensors with 270 k Pixels ∫Under d.

LZ0P3611 Datasheet (126.62 KB)

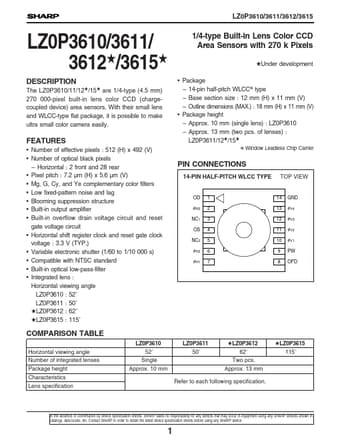

Preview of LZ0P3611 PDF

Datasheet Details

Part number:

LZ0P3611

Manufacturer:

Sharp Electrionic Components

File Size:

126.62 KB

Description:

1/4-type built-in lens color ccd area sensors.
