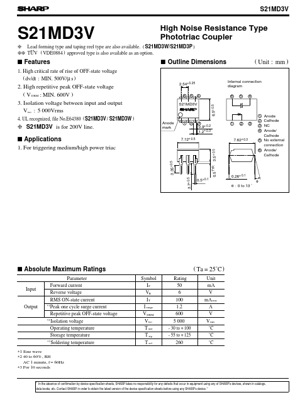

S21MD3V Datasheet, Coupler, Sharp Electrionic Components

S21MD3V Features

• Coupler 1. High critical rate of rise of OFF-state voltage ( dv/dt : MIN. 500V/µ s ) 2. High repetitive peak OFF-state voltage ( V DRM : MIN. 600V ) 3. Isolation voltage between input and outpu

PDF File Details

Part number:

S21MD3V

Manufacturer:

Sharp Electrionic Components

File Size:

48.41kb

Download:

📄 Datasheet

Description:

High noise resistance type phototriac coupler.

S21MD3V Application

• Applications 1. For triggering medium/high power triac 3.35± 0.5 7.12± 0.5 0.5TYP. 3.5 ± 0.5 7.62± 0.3 Anode Cathode NC Anode/ Cathode 5 No exter
