S21MD4V Datasheet, Coupler, Sharp Electrionic Components

S21MD4V Features

  • Coupler 1. Built-in zero-cross circuit 2. High critical rate of rise of OFF-state voltage ( dV/dt : MIN. 100V/ µ s ) 3. High repetitive peak OFF-state voltage ( VDRM : MIN. 600V ) 4. Isolation

PDF File Details

Part number:

S21MD4V

Manufacturer:

Sharp Electrionic Components

File Size:

48.81kb

Download:

📄 Datasheet

Description:

Built-in zero-cross circuit/ high noise resistance type phototriac coupler.

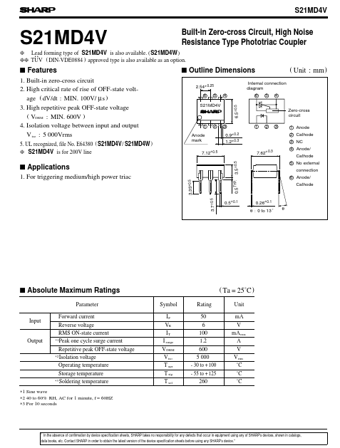

Datasheet Preview: S21MD4V 📥 Download PDF (48.81kb)
Page 2 of S21MD4V Page 3 of S21MD4V

S21MD4V Application

  • Applications 3.35±0.5 3.7±0.5 0.5± 0.1 0.5TYP. 1. For triggering medium/high power triac 0.26± 0.1 θ : 0 to 13 ˚ θ s Absolute Maximum Ratings
