PQ050ES1MXP, PQ033ES1MXP - Low Power-Loss Voltage Regulator

PQ050ES1MXP Description

www.DataSheet4U.com Under development PQ033ES1MXP PQ050ES1MXP .

PQ050ES1MXP Features

* (1) Compact package : TO-92 type (Size(mold part) 5.2 × 5.5 × 4.2 mm) (2) Small current output : 100 mA(MAX. ) (3) Low consumption current : Quiescent current Iq=MAX. 350 µA (4) Low power-loss : Dropout voltage : MAX. 0.26 V at Io=60 mA Dropout voltage : MAX. 0.4 V at Io=150 mA (5) Built-in overcurre

PQ050ES1MXP Applications

* (1) TV (2) VCR (3) Air conditioner (4) DVD player (5) Audio equipment 0.4 2.5± 0.1 2.5± 0.4 0.1 R2 .4 Internal connection 1 DC output(Vo) 2 GND 3 DC input(Vin) 3 Control circuit 1 2 Absolute Maximum Ratings Parameter Input voltage Output current Power dissipation Junction temperature Operating

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PQ050ES1MXP, PQ033ES1MXP. Please refer to the document for exact specifications by model.

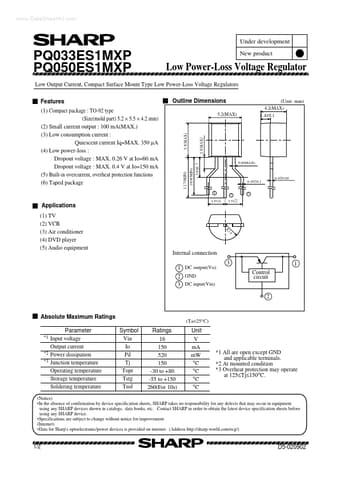

datasheet Preview Page 2 datasheet Preview Page 3
