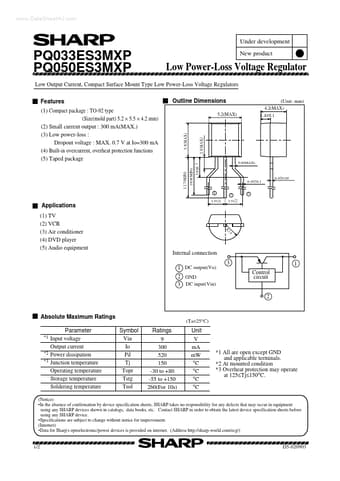

PQ050ES3MXP Datasheet, Regulator, Sharp Electrionic

PQ050ES3MXP Features

• Regulator (1) Compact package : TO-92 type (Size(mold part) 5.2 × 5.5 × 4.2 mm) (2) Small current output : 300 mA(MAX.) (3) Low power-loss : Dropout voltage : MAX. 0.7 V at Io=300 mA (4) Built-in

PDF File Details

Part number:

PQ050ES3MXP

Manufacturer:

Sharp Electrionic

File Size:

64.66kb

Download:

📄 Datasheet

Description:

Low power-loss voltage regulator.

PQ050ES3MXP Application

• Applications (1) TV (2) VCR (3) Air conditioner (4) DVD player (5) Audio equipment 0.4 2.5± 0.1 2.5± 0.4 0.1 R2 .4 Internal connection 1 DC outp
