PQ09RA11, PQ09RA1, Low Power-Loss Voltage Regulators

Low Power-Loss Voltage Regulators www.DataSheet4U.com PQ05RA1/PQ05RA11 Series PQ05RA1/PQ05RA11 Series OFF-state Low Dissipation Current 1A Output, L.

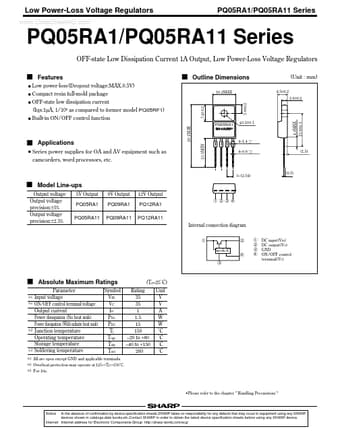

datasheet Preview Page 1 from Datasheet4u.com

PQ09RA1_SharpElectrionic.pdf

PQ09RA11 Datasheet Preview — This datasheet PDF includes multiple part numbers: PQ09RA11, PQ09RA1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PQ09RA11, PQ09RA1

Manufacturer:

Sharp Electrionic

File Size:

84.34 KB

Description:

Low Power-Loss Voltage Regulators

Note:

This datasheet PDF includes multiple part numbers: PQ09RA11, PQ09RA1.
Please refer to the document for exact specifications by model.

Features

* s Outline Dimensions 10.2MAX 4.5±0.2 (Unit : mm) Low power-loss(Dropout voltage:MAX.0.5V) q Compact resin full-mold package q OFF-state low dissipation current (Iqs:1µA, 1/104 as compared to former model PQ05RF1) q Built-in ON/OFF control function 29.1MAX 2.8±0.2 7.4±0.2 PQ05RA1 q Series po

Applications

* 4
* 1.4 +0.3
* 0 4
* 0.6 +0.2
* 0.1 (1.5) 3
* (2.54) (0.5) s Model Line-ups 5V Output PQ05RA1 PQ05RA11 9V Output PQ09RA1 PQ09RA11 12V Output PQ12RA1 PQ12RA11 Internal connection diagram Output voltage Output voltage precision:±5% Output voltage precision:±2.5%
