PQ1M185M2SPQ, PQ1M155M2SPQ Datasheet - Sharp Electrionic

PQ1M185M2SPQ, PQ1M155M2SPQ, (PQ1M155M2SPQ) Compact Surface Mount Type Low Power-Loss Voltage Regulators

www.DataSheet4U.com PQ1Mxx5M2SPQ Series PQ1Mxx5M2SPQ Series Compact Surface Mount Type Low Power-Loss Voltage Regulators .

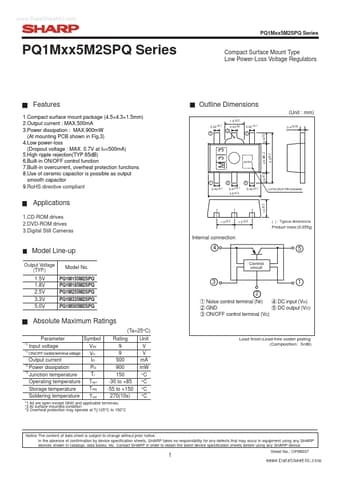

datasheet Preview Page 1 from Datasheet4u.com

PQ1M155M2SPQ_SharpElectrionic.pdf

PQ1M185M2SPQ Datasheet Preview — This datasheet PDF includes multiple part numbers: PQ1M185M2SPQ, PQ1M155M2SPQ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PQ1M185M2SPQ, PQ1M155M2SPQ

Manufacturer:

Sharp Electrionic

File Size:

172.46 KB

Description:

(PQ1M155M2SPQ) Compact Surface Mount Type Low Power-Loss Voltage Regulators

Note:

This datasheet PDF includes multiple part numbers: PQ1M185M2SPQ, PQ1M155M2SPQ.
Please refer to the document for exact specifications by model.

Features

* 1.Compact surface mount package (4.5×4.3×1.5mm) 2.Output current : MAX.500mA 3.Power dissipation : MAX.900mW (At mounting PCB shown in Fig.3) 4.Low power-loss (Dropout voltage : MAX. 0.7V at IO=500mA) 5.High ripple rejection(TYP.65dB) 6.Built-in ON/OFF control function 7.Built-in overcurrent, overhe

Applications

* 1.CD-ROM drives 2.DVD-ROM drives 3.Digital Still Cameras 1.5 ±0.2 Internal connection Model Line-up Output Voltage (TYP. ) 1.5V 1.8V 2.5V 3.3V 5.0V Model No. PQ1M155M2SPQ PQ1M185M2SPQ PQ1M255M2SPQ PQ1M335M2SPQ PQ1M505M2SPQ 4 Control circuit 4.3 ±0.3 ( ) : Typical dimensions Product mass:(0.055g
